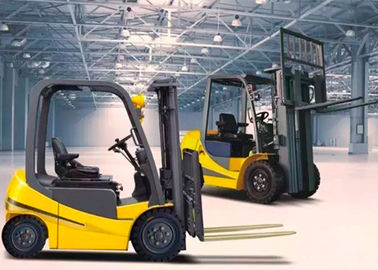

four wheels 3ton warehouse electric forklift truck with 3m lift height
Specification
Specification | ||
Model | FB30E | |
Load capacity | kg | 3000 |
Load center distance | mm | 500 |
Lift height | mm | 3000 |
Height, mast lowered | mm | 2040 |
Aisle width for pallets 1000*1200 crossways | mm | 3750 |
Aisle width for pallets 800*1200 lengthways | mm | 3550 |
Travel speed, laden/unladen | km/h | 0-13.5 |
Lift speed, laden/unladen | mm/s | 260 |
Battery | V/Ah | 48/630 |
Type of drive control | DC/AC |
Advantage
Floor board are easily removed for quick service assess
Insulated battery cover gas-filled cylinders and easy to maintain
The lifting motor under the floorboard for easy maintence.
Mast cyllinder lowering with buffering system: shock absorber steering axle with low noise. All of seal kits imported from Japan.
The optional of third safety pedal to reduce the driving speed while stacking and steering application.
High-friction brake shoes are free of asbestos
With reverse mirror, fromt work light and back work light group.
