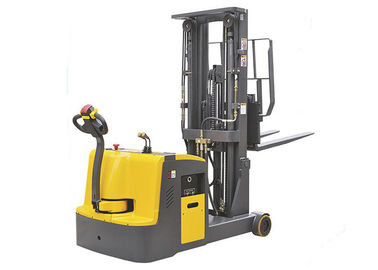

Counter Balanced Warehouse Forklift Trucks Lifting Height 5.6m Compact Structure

1 set
Counter Balanced Warehouse Forklift Trucks Lifting Height 5.6m Compact Structure
Features Gallery Product Description Request A Quote
Capacity: 1500kg
Operation Type: Standing
Load Center: 500mm
Max. Lifting Height: 2500-5600mm
Aisle Width For Pallets: 2950/3070mm
Turning Radius: 1570mm
Battery: 24V320AH
Service Weight: 2080kg
High Light:

three wheel electric forklift


warehouse lift truck


5.6m Height Warehouse Forklift Trucks

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: CPD15W
Payment & Shipping Terms
Packaging Details: Nude
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description


Walking counterbalanced electric warehouse forklift trucks lifting height 2.5 to 5.6 meters

Quick Details:
Model: Counterbalanced walking electric warehouse forklift trucks CPD15W
​​​Capacity: 1500kg
Lift height: 2500-5600mm
Fork dimensions: 35/100/950(1070)mm

​Aisle width for pallets 1000*1200 lengthways: 2950mm

​Aisle width for pallets 800*1200 crossways: 3070mm

​Turning radius: 1570mm
Travel speed, load/unload: 5.8/6km/h​

​Lifting speed, load/unload: 0.12/0.19m/s

​Lowering speed, load/unload: 0.42/0.41m/s

​Gradeablity: 6/10%
Battery: 24V320Ah

​Service weight: 2080kg

  • Capacity 1.5 tons, lifting height 2.5 meters to 5.6 meters.
  • Compact structure, can work in narrow warehouses.
  • It is mainly used for storage and short distance transportation of pallets and goods.
  • The vertical driving wheel with excellent performance, quality is stable and reliable.
  • Imported AC control system: quick response, reduced maintenance and noise, both from low to high speed or high speed to low speed has strong control ability.
  • Import handle assembly, stable and flexible manipulation.
  • Imported mast steel, safe and beautiful, strong and durable.
  • Fork can tilt forward, backward.
  • The counterweight is at the back of the warehouse forklift trucks, no fixed front fork legs.
  • Forks can enter the bottom of the cargo which is very small from the ground clearance.
  • Easily enter any cargo yard stacking goods.
  • Easy maintenance design.
  • With compact structure, high performance, and easy maintenance with regenerative braking
  • With large capacity battery, ensure the sustained power, convenient and quick charging.
  • The battery is pulled out from the side, which is beneficial to the exchange and maintenance of the battery.
  • Low voltage protection function, protect the battery voltage is lower than the voltage in use, prolong the service life.


Counter Balanced Warehouse Forklift Trucks Lifting Height 5.6m Compact Structure 0


Model   CPD15W
Load capacity kg 1500
Load center distance mm 500
Load distance mm 130
Tyre size, front mm 250*70
Tyre size, rear mm 200*100
Additional wheels (dimensions) mm ~
Fork, tilt forward/backward ° 3/6
Height, mast lowered mm 1735/1985/2235/1895/2085/2235/2435
Free lift (option) mm 0/0/0/1400/1500/1670/1870
Max. lifting height mm 2500/3000/3500/4000/4500/5000/5600
Height, mast extended mm 3500/4000/4500/5000/5500/6000/6600
Height of tiller in drive position min./max. mm 730/1360
Overall length mm 2650
Length to face of forks mm 1700
Overall width mm 990
Fork dimensions mm 35/100/950(1070)
Width overall forks mm 220-680
Aisle width for pallets 800*1200 lengthways mm 3070
Turning radius mm 1570
Travel speed, laden/unladen km/h 5.8/6
Lift speed, laden/unladen m/s 0.12/0.19
Lowering speed, laden/unladen m/s 0.42/0.41
Battery V/Ah 24/320
Service weight kg 2080


Counter Balanced Warehouse Forklift Trucks Lifting Height 5.6m Compact Structure 1Counter Balanced Warehouse Forklift Trucks Lifting Height 5.6m Compact Structure 2
