Mast Reach Electric Walk Behind Forklift 1250kg AC Control Low Gravity

Products

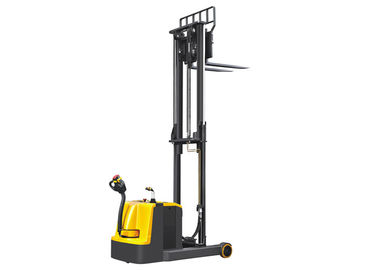

Mast Reach Electric Walk Behind Forklift 1250kg AC Control Low Gravity

MOQ:	1 set
Price:	Negotiable
Standard Packaging:	Nude
Delivery Period:	25 - 30 days
Payment Method:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

Zhejiang, China

Brand Name

REACH

Certification

CE, TUV

Model Number

CQD12W

Capacity:

1250kg

Load Center:

500mm

Drive Motor Power:

1.2kw

Lifting Motor Power:

2.2kw

Reach Distance:

560mm

Turning Radius:

1550mm

Battery:

24V270AH

Max. Lifting Height:

5600mm

Highlight:

three wheel electric forklift

electric warehouse forklift

1250kg electric walk behind forklift

Product Description

Mast reach 1250kg electric warehouse forklift trucks walking operation AC control

Quick Details:

Model: Mast reach electric warehouse forklift trucks CQD12W
Capacity: 1250kg
Lift height: 2500-5600mm
Fork dimensions: 35/100/950(1070/1150)mm

Aisle width for pallets: 2620mm

Turning radius: 1560mm
Travel speed, load/unload: 5.5/6km/h
Battery: 24V270Ah

Service weight: 1700kg

Advantages:

Structural

Long handle structure makes it steering light and flexible.
Two lifting cylinders placed on outer sides of the mast.
Germany imported special steel mast.
Vertical driving wheel, driving efficiency, easy installation & maintenance.
Compact structure and low gravity.

Safety and efficiency

AC frequency conversion traction motor: compact structure, good performance, regenerative braking and easy maintenance.
Tilting system forks easy for loading and stacking.
High storage battery ensures strong and long-lasting power.
Meter with BDI. Prolonging the battery’s using time.
The braking system combines magnetic brake and regenerative break, greatly prolongs the using life of friction plate.
With emergency stop switch and electricity lock button, and multi-valve controlling levers, ergonomic for operation.
The adjustable regulator valve can adjust the lowing speed of the masts.

Easy maintenance

Magnet suction battery cover, easy for installation and maintenance.
AC controlling system, low noise, less maintenance.

Mast Reach Electric Walk Behind Forklift 1250kg AC Control Low Gravity 0

SPECIFICATIONS
Model		CQD12W
Load capacity	kg	1250
Load center distance	mm	500
Load distance	mm	430
Tyre size, front	mm	250*70
Tyre size, rear	mm	210*85
Additional wheels (dimensions)	mm	127*57
Tread rear	mm	908
Fork, tilt forward/backward	°	3/6
Height, mast lowered	mm	1820/2070/2320/1920/2080/2250/2420
Free lift (option)	mm	0/0/0/1386/1550/1720/1886
Max. lifting height	mm	2500/3000/3500/4000/4500/5000/5500
Height, mast extended	mm	3300/3800/4300/4800/5300/5800/6300
Height of tiller in drive position min./max.	mm	570/1320
Overall length	mm	2080
Length to face of forks	mm	1130
Overall width	mm	990
Fork dimensions	mm	35/100/950(1070/1150)
Fork carriage width	mm	220-680
Reach distance	mm	560
Aisle width for pallets 800*1200 lengthways	mm	2620
Turning radius	mm	1550
Travel speed, laden/unladen	km/h	5.5/6
Lift speed, laden/unladen	m/s	0.13/0.2
Lowering speed, laden/unladen	m/s	0.42/0.41(adjustable)
Battery	V/Ah	24/270
Service weight	kg	1700

Mast Reach Electric Walk Behind Forklift 1250kg AC Control Low Gravity 1
