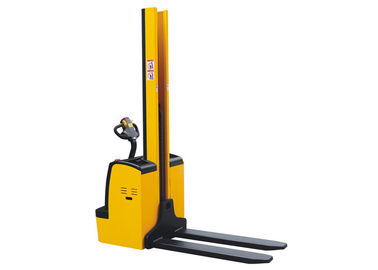

Walkie Electric Warehouse Forklift , Single Column Lifting Material Handling Forklift

Products

Walkie Electric Warehouse Forklift , Single Column Lifting Material Handling Forklift

MOQ:	1 set
Price:	Negotiable
Standard Packaging:	Nude
Delivery Period:	25 - 30 days
Payment Method:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

Zhejiang, China

Brand Name

REACH

Certification

CE, TUV

Model Number

CDDRD12

Capacity:

1200kg

Load Center:

600mm

Lifting Height:

1600/1950mm

Lowered Fork Height:

Fork Size:

60/170/1070(1150)mm

Drive Speed, Laden/unladen:

5.3/5.6km/h

Lift Speed, Laden/unladen:

0.11/0.19m/s

Lower Speed, Laden/unladen:

0.16/0.11m/s

Highlight:

three wheel electric forklift

warehouse lift truck

single column warehouse forklift trucks

Product Description

Electric walkie stacker warehouse forklift trucks with single column lifting height 1950mm

Quick Details:

Model: Warehouse forklift trucks with single column CDDRD12
Capacity: 1200kg
Lift height: 1600/1950mm
Fork dimensions: 60/170/1070(1150)mm
Turning radius: 1338mm

Travelling speed, laden/unladen: 5.3/5.6km/h

Lift speed, laden/unladen: 0.11/0.19m/s

Lower speed, laden/unladen: 0.16/0.11m/s
Battery: 24V105Ah

Advantages:

DC brushless motor with high transmission efficiency, have good ramp starting performance.
Low center of gravity, good stability and smooth running.
Small minimum turning radius and excellent steering operating performance.
With Anti-shock device, greatly reduce the noise.
The multi function display instrument with BDI and working hours.
Using the built-in charger easy to access for charging battery.
Adopting Integrated electrical system, wiring easy to maintain.
Environmental & maintenance-free GEL battery.
Single Column mast with wide view for operation.
Emergency brake function improve the safety operation.
Low-voltage protection function.

SPECIFICATIONS
Model		CDDRD12
Load capacity	kg	1200
Load center	mm	600
Fork hanging distance	mm	630
Tyre size, front	mm	250*70
Tyre size, rear	mm	80*70
Additional wheels (dimensions)	mm	150*60
Height, mast lowered	mm	1980/2330
Max. lifting height	mm	1600/1950
Height, mast extended	mm	1980/2330
Height of tiller in drive position min./max.	mm	670/1300
Fork height, lowered	mm	90
Overall length	mm	1780/1860
Length to face of forks	mm	708
Overall width	mm	820
Fork dimensions	mm	60/170/1070(1150)
Width overall forks	mm	570
Aisle width for pallets 800*1200 lengthways	mm	2220
Turning radius	mm	1338
Travel speed, laden/unladen	km/h	5.3/5.6
Lift speed, laden/unladen	m/s	0.11/0.19
Lowering speed, laden/unladen	m/s	0.16/0.11
Battery	V/Ah	24/80
Service weight	kg	590

Walkie Electric Warehouse Forklift , Single Column Lifting Material Handling Forklift 0

Walkie Electric Warehouse Forklift , Single Column Lifting Material Handling Forklift 3
