Electric Stacker Warehouse Forklift Trucks Counterbalanced With Low Voltage Protection

1 set
Electric Stacker Warehouse Forklift Trucks Counterbalanced With Low Voltage Protection
Features Gallery Product Description Request A Quote
Capacity: 1250kg
Max. Lifting Height: 2500-5500mm
Fork Dimensions: 35/100/950(1070/1150)mm
Turning Radius: 1650mm
Aisle Width For Pallets: 2650mm
Travel Speed, Load/unload: 6.8/7km/h
Battery: 24V270AH
Service Weight: 1800kg
High Light:

three wheel electric forklift


warehouse lift truck


1250kg counterbalanced electric stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: CQD12R
Payment & Shipping Terms
Packaging Details: Nude
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description


1250kg counterbalanced electric stacker warehouse forklift trucks mast reach type

Quick Details:
Model: Reach type electric warehouse forklift trucks CQD12R
​​​Capacity: 1250kg
Lift height: 2500-5500mm
Fork dimensions: 35/100/950(1070/1150)mm

​Aisle width for pallets: 2650mm

​Turning radius: 1650mm
Travel speed, load/unload: 6.8/7km/h​
Battery: 24V270Ah

​Service weight: 1800kg

  • With short handle and standing structure, the steering is light and flexible, and has good handling performance (imported handle assembly).
  • Two lifting cylinders are adopted, and the lifting oil cylinder and the chain are mounted on both sides of the mast, which improves the lateral stability of the cargo lifting and widens the vision of the operator.
  • The portal mast column material is the special type of imported high lift steel.
  • The forks have the function of front and back tilting, which is beneficial to the loading, unloading and stacking operation of goods.
  • The reach type warehouse forklift trucks has compact structure, low center of gravity and good steering stability.
  • Large capacity battery to ensure strong and lasting power.
  • The AC variable frequency traction motor has the advantages of compact structure, high performance, regenerative braking and easy maintenance.
  • Import AC control system, sensitive response, reduce maintenance and noise, both from low speed to high speed or high speed to low speed have strong control ability.
  • Low voltage protection, prolong the service life of battery.
  • The vertical driving wheel has the advantages of low noise, high transmission efficiency, convenient installation and maintenance.
  • The braking system is reliable, the electromagnetic brake is combined with regenerative braking, which greatly prolongs the service life of the friction plate.
  • Reliable multi-channel valve hydraulic control system, with lifting, front and back movement, front and rear tilt function.
  • Built in charger, free lifting, fork side shift, can be used as customer selection.
  • Adjustable lower speed control valve can adjust the speed of the mast lowering.
  • Back of the  mast fitted with rubber shock pad, to prevent the mast after the impact time, reduce noise.
  • High lift triplex mast mounting height limit switch, ensure warehouse forklift trucks stability and safety performance of L.
  • The power box cover is pulled by magnet and has no screw fixation, so it is easy to install and disassemble.
  • Maintenance is convenient, the battery box can be maintained only by opening the power box cover, and it is convenient to add the hydraulic oil to the front tank.
  • No baffle on both sides of the storage battery is beneficial to the heat dissipation of the battery, and the hoisting is convenient and safe.
  • Low noise.

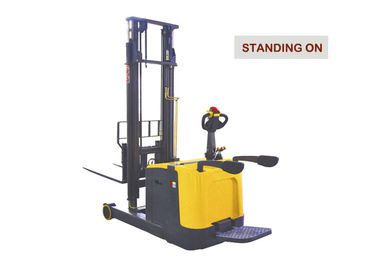

Electric Stacker Warehouse Forklift Trucks Counterbalanced With Low Voltage Protection 0


Model   CQD12R
Load capacity kg 1250
Load center distance mm 500
Load distance mm 430
Tyre size, front mm 250*70
Tyre size, rear mm 210*85
Additional wheels (dimensions) mm 150*60
Fork, tilt forward/backward ° 3/6
Height, mast lowered mm 1820/2070/2320/1920/2080/2250/2420
Free lift (option) mm 0/0/0/1386/1550/1720/1886
Max. lifting height mm 2500/3000/3500/4000/4500/5000/5500
Height, mast extended mm 3300/3800/4300/4800/5300/5800/6300
Height of tiller in drive position min./max. mm 1160/1460
Overall length mm 2150
Length to face of forks mm 1200
Overall width mm 990
Fork dimensions mm 35/100/950(1070/1150)
Fork carriage width mm 220-680
Reach distance mm 560
Aisle width for pallets 800*1200 lengthways mm 2650
Turning radius mm 1650
Travel speed, laden/unladen km/h 6.8/7
Lift speed, laden/unladen m/s 0.13/0.2
Lowering speed, laden/unladen m/s 0.42/0.41(adjustable)
Battery V/Ah 24/270
Service weight kg 1800



Electric Stacker Warehouse Forklift Trucks Counterbalanced With Low Voltage Protection 1
