Counterbalanced Pallet Stacker Forklift With AC Drive System Legless Design

Products

Counterbalanced Pallet Stacker Forklift With AC Drive System Legless Design

MOQ:	1 set
Price:	negotiable
Standard Packaging:	1set / pallet
Delivery Period:	25 - 30 days
Payment Method:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

Zhejiang, China

Brand Name

REACH

Certification

Model Number

QDA12B

Capacity:

1200kg

Max. Lifting Height:

5500mm

Free Lift Height:

300mm

Mast Height Lowered:

2420mm

Mast Height Extended:

6650mm

Fork Dimension:

35/100/1070mm

Travel Speed, Laden/unladen:

4km/h

Turning Radius:

1390mm

Highlight:

hydraulic pallet stacker

straddle pallet stacker

Product Description

1200kg 5500mm counterbalanced electric pallet stacker with AC drive system

Quick Details:

Description: counterbalanced electric pallet stacker QDA12B
Capacity: 1200kg
Max. lifting height: 5500mm
Aisle width for pallets 1000*1200 crossways: 2610mm

Aisle width for pallets 800*1200 lengthways: 2740mm

Travel speed, laden/unladen: 4km/h
Lifting speed, laden/unladen: 0.09/0.12m/s

Lowering speed, laden/unladen: 0.12/0.09m/s

Advantages:

Legless design, small turning radius and wide range of application.
With the main block design, a variety of front shelves can be matched to meet the demand of various tonnage.
The upper cover of the electric pallet stacker body is designed with buckle, can be disassembled quickly and easily.
Full free lifting saves operating space.
Speed conversion system: when carrying at high level, the walking speed will become slower, can achieve the effect of security protection for operators.
Metal cover.

Option:

Electronic steering system.
Imported ZF gearbox.
The handle has the function of fast and slow shift, and the lifting speed is controllable.

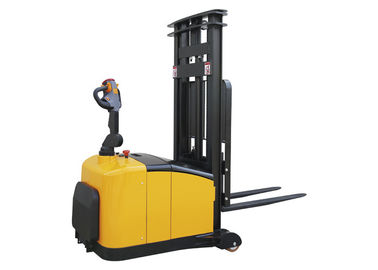

Counterbalanced Pallet Stacker Forklift With AC Drive System Legless Design 0

SPECIFICATIONS
Model		QDA12B
Driving type		Electric
Operating		Walking/Standing
Rated capacity	kg	1200
Load center distance	mm	600
Wheelbase	mm	1150
Wheels		polyurethane wheel
Wheel dimension, front	mm	250*75
Wheel dimension, rear	mm	150*102
Thread, rear	mm	878
Max. lifting height	mm	5500
Free lift height	mm	300
Height, fork lowered	mm	45
Ground clearance	mm	80
Extended mast height	mm	6650
Lowered mast height	mm	2420
Overall length	mm	2680
Overall width	mm	1020
Fork dimensions	mm	351001070
Aisle width for pallets 1000*1200 crosswise	mm	2610
Aisle width for pallets 800*1200 lengthwise	mm	2740
Turning radius	mm	1390
Travel speed, laden/unladen	km/h	4-4
Lift speed, laden/unladen	m/s	0.09/0.12
Lowering speed, laden/unladen	m/s	0.12/0.09
Max. Gradient, load/unload	%	5/10
Travel brake		electric regenerative braking
Driving motor power	kw	1.5
Lifting motor power	kw	3
Turing mode		Electronic steering
Battery	V/Ah	24/210
Service weight	kg	2200

Counterbalanced Pallet Stacker Forklift With AC Drive System Legless Design 1
