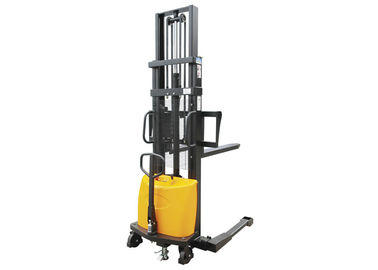

1000kg Powered Pallet Stacker , Adjustable Straddle Pallet Stacker Truck

1 set
1000kg Powered Pallet Stacker , Adjustable Straddle Pallet Stacker Truck
Features Gallery Product Description Request A Quote
Capacity: 1000kg
Max. Lifting Height: 1600-3500mm
Overall Length: 1735mm
Turning Radius: 1415mm
Fork Length: 900/170/1150mm
Forks Width: 550/660mm
Liftingmotor Power: 1.6kw
Battery: 24V100/120/135AH
High Light:

straddle pallet stacker


walk behind pallet stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE
Model Number: BDA10S
Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description



Strong mast 1000kg semi electric pallet stacker with adjustable straddle legs

Quick Details:
Description: Semi Electric Pallet Stacker BDA10S
Capacity: 1000kg
Max. lifting height: 1600mm, 2000mm, 2500mm, 3000mm, 3300mm, 3500mm
Turning radius: 1415mm
Drive motor: 0.75kw

​Lifting motor: 1.6kw

Battery: 12V(100/120/135)AH




  • Low center of gravity, making the stacker more stable during use and reliable.
  • Over-discharge protection device greatly extended battery life.
  • The use of imported mast materials, ensures high strength, good stability.
  • Adjustable forged forks can be lowered to the same height of legs.
  • Foot brake is simple and easy to maintain.
  • Strong wheel frame ensures good operation.
  • Setting a explosion-proof valve in the pump,to avoid rapid decline when oil pipe damaged in the accident to ensure the operator’s safety.
  • With ISO certificates.

1000kg Powered Pallet Stacker , Adjustable Straddle Pallet Stacker Truck 0


Model   BDA-S
Load capacity kg 1000
Load center distance mm 500
Wheel base mm 1145
Tyre size, front mm 180*50
Tyre size, rear mm 80*70
Lowered mast height mm 2088
Max. lifting height mm 1600/2500/3000/3300/3500
Extended mast height mm 2088
Lowered fork height mm 90
Overall length mm 1505
Overall width mm 800(980)
Fork length mm 900/1070/1150
Width overall forks mm 550/660
Ground clearance mm 28
Aisle width for pallets 1000*1200 crossways mm 1705
Aisle width for pallets 800*1200 lengthways mm 1755
Turning radius mm 1210
Lift speed, laden/unladen m/s 0.135/0.15
Lowering speed, laden/unladen m/s manual
Lifting motor power kw 1.6
Battery V/Ah 12/(100/120/135)
Service weight kg 265-350
