12V Electric Pallet Stacker 1000kg , Mechanical Steering Small Turning Radius

1 set
MOQ
Negotiable
Price
12V Electric Pallet Stacker 1000kg , Mechanical Steering Small Turning Radius
Features Gallery Product Description Request A Quote
Features
Specifications
Maximum Load: 1000kg
Weight(with Battery): 680kg
Overall Length Of Frame: 1810mm
Overall Width Of Frame: 850mm
High Light:

straddle pallet stacker

,

walk behind pallet stacker

Basic Infomation
Place of Origin: Zhejiang , China
Brand Name: REACH
Certification: CE , TUV
Model Number: KLD-D(12V)
Payment & Shipping Terms
Packaging Details: Nude packing
Delivery Time: 20 - 35 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets per month
Product Description



12V Electric Pallet Stacker 1000kg , mechanical steering small turning radius



Quick details:




> Load capacity: 1000kg



> Max. lifting height: 1600mm/ 2000mm/ 2500mm



> Fork dimensions: 65×170×1150mm



> Lift speed, laden/ unladen: 135/140 mm/s



> Travel speed, laden/unladen: 3.5/4.5 Km(h)



> Lowering speed, laden/unladen: 155/150 mm/s



> Aisle width: 2150mm









Product specification:






SPECIFICATIONS
Model KLD-D(12V)
Load capacity 1000 kg
Load center distance 600 mm
Wheelbase 1340 mm
Front wheel φ85*70 mm
Drive wheel φ210*70 mm
Additional wheel φ130*55 mm
Wheel material PU mm
Height, mast lowered 2120/1610/1835 mm
Max. lifting height 1600/2000/2500 mm
Height, mast extended 2165/2670/3010 mm
Overall length 1810 mm
Overall width 850 mm
Fork length 1150 mm
Width overall forks 680 mm
Inside fork width 340 mm
Fork thickness 65 mm
Min. founf height 15 mm
Fork lowered height 90mm mm
Min. intersecting aisle width 2150 mm
Turning radius 1550 mm
Travel speed, without load 4.5 km/h
Travel speed, with load 3.5 km/h
Lifting speed, without load 140 mm/s
Lifting speed, with load 135 mm/s
Lowering speed, without load 150 mm/s
Lowering speed, with load 155 mm/s
Max. gradient, without load 7 %
Max. gradient, with load 3 %
Battery 12/120 V/Ah
Service weight 680kg kg








Advantages:




1) Mechanical steering, operation handle at the truck side, wide view.



2) Horizontal type drive wheel, it is detachable, easy for maintenance.



3) Add idler wheel on the side of mast, reduce friction, ensures the stability of mast.



4) KLD-D uses plate-type chain instead of general roller chain, makes the lifting safer.



5) The supporting legs are high strength Solid flat iron, higher load bearing strength.



6) This model is equipped with curtis controller, AMP waterproof power connector and ALBRIGHT contactor.



7) Electromagnetic type clutch will brake the truck when no power.



8) KLD-D will cut the power off when lift up, makes the operation more secure.

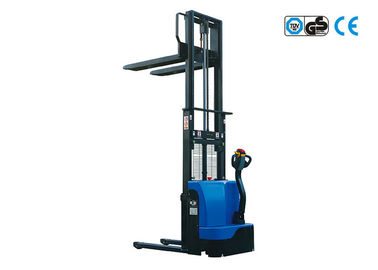

12V Electric Pallet Stacker 1000kg , Mechanical Steering Small Turning Radius 0
