Quick details:
> Load capacity: 1000kg (1500kg/2000kg are available)
> Max. lifting height: 1600 - 3300mm
> Fork dimensions: 65×170×1150mm
> Lift speed, laden/ unladen: 135/140 mm/s
> Travel speed, laden/unladen: 3.5/4.5 Km(h)
> Lowering speed, laden/unladen: 155/150 mm/s
> Aisle width: 2150mm
Product specification:
SPECIFICATIONS | ||
Model | KLD-D(24V) | |
Load capacity | 1000 | kg |
Load center distance | 600 | mm |
Wheelbase | 1340 | mm |
Front wheel | φ85*70 | mm |
Drive wheel | φ210*70 | mm |
Additional wheel | φ130*55 | mm |
Wheel material | PU | mm |
Height, mast lowered | 2120/1610/1835/2085/2235 | mm |
Max. lifting height | 1600/2000/2500/3000/3300 | mm |
Height, mast extended | 2165/2670/3010/3510/3810 | mm |
Overall length | 1810 | mm |
Overall width | 850 | mm |
Fork length | 1150 | mm |
Width overall forks | 680 | mm |
Inside fork width | 340 | mm |
Fork thickness | 65 | mm |
Min. founf height | 15 | mm |
Fork lowered height | 90mm | mm |
Min. intersecting aisle width | 2150 | mm |
Turning radius | 1550 | mm |
Travel speed, without load | 4.5 | km/h |
Travel speed, with load | 3.5 | km/h |
Lifting speed, without load | 140 | mm/s |
Lifting speed, with load | 135 | mm/s |
Lowering speed, without load | 150 | mm/s |
Lowering speed, with load | 155 | mm/s |
Max. gradient, without load | 7 | % |
Max. gradient, with load | 3 | % |
Battery | 24/120 | V/Ah |
Service weight | 680kg | kg |
Advantages:

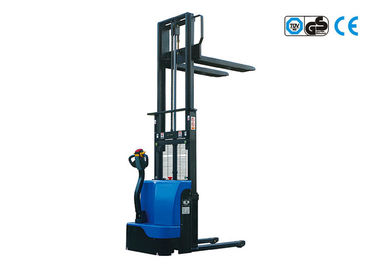

Electric pallet stacker
1) This model with mechanical steering and the operation handle at the truck side, wide view for operator.
2) Detachable horizontal type drive wheel, easy for replacement.
3) KLD-D uses idler wheel on the side of mast, reduce friction, to insures the stability of mast.
4) This model uses plate-type chain instead of conventional roller chain, in order to makes the lifting safer.
5) The supporting legs uses high strength solid iron, provides higher load bearing strength.
6) KLD-D is equipped with curtis controller, AMP water-proof power connector and ALBRIGHT contactor.
7) Electromagnetic type clutch will brake the truck automatically when there is no power.
8) KLD-D will cut the power off when lift up, makes the operation more secure.
Optional Configuration:
- Cold storage type, double controller double drive type
- Straddle legs
...
