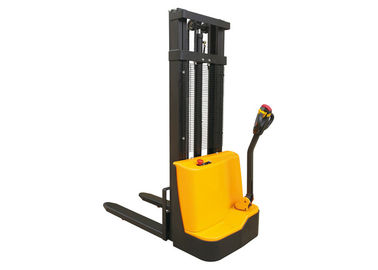

1200kg narrow width Electric pallet stacker with 3m max lift height
Specification
| Model | QDAE | |
| Driving type | Electric | |
| Operating | Walking | |
| Rated capacity | kg | 1000/1200 |
| Load center distance | mm | 500 |
| Wheels | polyurethane wheel | |
| Max. lifting height | mm | 1600/2500/3000/3300 |
| Lowered mast height | mm | 2080/1830/2080/2230 |
| Overall height | mm | 2080/2950/3450/3600 |
| Min. fork height | mm | 85 |
| Overall length | mm | 1750 |
| Overall width | mm | 790 |
| Forks size | mm | 60/142/1070 |
| Travel speed, laden/unladen | km/h | 3.5/4 |
| Lift speed, laden/unladen | m/s | 0.1/0.2 |
| Battery | V/Ah | 24/75, 24/120 |
| Service weight | kg | 553 |
Advantage
- Back cover is integrated type design, easy to assemble and maintain.
- Use GEL battery free to maintain.
- Built in charger easy to access to power supply.
- Low gravity design, 4 point design, improve the trucks stability.
- This drive unit have small turning, the motor and brake is very easy to replace.
- Compact design and small dimensions, offer excellent visibility.
- The turning radius and aisle width is very small and which is similar with manual stacker.
