Quick Details:

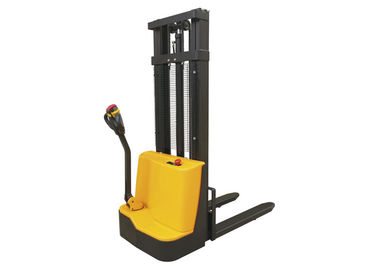

Description: Electric Pallet Stacker QDA12E
Capacity: 1200kg
Max. lifting height: 1600mm, 2500mm, 3000mm, 3300mm
Fork dimensions: 60/142/1070mm
Turning radius: 1390mm
Lifting speed, laden/unladen: 0.1/0.2m/s
Lowering speed, laden/unladen: 0.12/0.1m/s
Battery: 24V120AH
Advantages:
| SPECIFICATIONS | ||
| Model | QDAE | |
| Driving type | Electric | |
| Operating | Walking | |
| Rated capacity | kg | 1000/1200 |
| Load center distance | mm | 500 |
| Wheels | polyurethane wheel | |
| Max. lifting height | mm | 1600/2500/3000/3300 |
| Lowered mast height | mm | 2080/1830/2080/2230 |
| Overall height | mm | 2080/2950/3450/3600 |
| Min. fork height | mm | 85 |
| Overall length | mm | 1750 |
| Overall width | mm | 790 |
| Forks size | mm | 60/142/1070 |
| Forks width | mm | 570/660 |
| Ground clearance | mm | 58 |
| Turning radius | mm | 1390 |
| Travel speed, laden/unladen | km/h | 3.5/4 |
| Lift speed, laden/unladen | m/s | 0.1/0.2 |
| Lowering speed, laden/unladen | m/s | 0.12/0.1 |
| Max. Gradient, load/unload | % | 3/10 |
| Travel brake | electric regenerative braking | |
| Driving motor power | kw | 0.75 |
| Lifting motor power | kw | 2 |
| Battery | V/Ah | 24/75, 24/120 |
| Service weight | kg | 553 |
