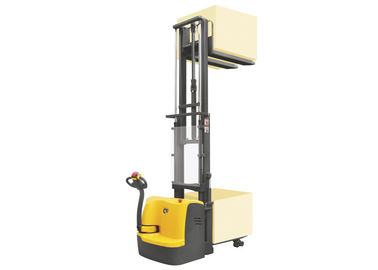

Waterproof Motor Full Electric Stacker , Initial Lift 1500kg Heavy Double Pallet Stacker

Initial lift 1500kg heavy electric pallet stacker with double pallet design


Quick Details:

Description: Electric Pallet Stacker With Initial Lift CDDR15S
Capacity: 1500kg
Max. lifting height: 2500mm, 3000mm, 3300mm, 3500mm
Fork dimensions: 60/180/1070(1150)mm

Aisle width for pallets: 2500mm
Lifting speed, laden/unladen: 0.11/0.14m/s

Lowering speed, laden/unladen: 0.12/0.12m/s

Battery: 24V240AH


Advantages:​​​​

• The 4-points support structure with side tiller, low center of gravity design with excellent stability.
• ​Double pallet design: two pallet handled at one time, initial lift of load leg increases ground clearance to negotiate easily ramps, dock levelers and bridging plates.
• ​Vertical driving wheel, offer small turning radius, dustproof and waterproof motor, easy for maintenance.
• ​AC motor without carbon brush, good ramp braking performance, efficient electromagnetic parking brake.
• ​Free lifting mast with two side cylinders offers wide view for operators.

This electric pallet stacker with a rated load capacity 1500kg. Specially designed for intensive stocking operations at medium height warehouse. 2000kg load can be transported using the initial lift function.
