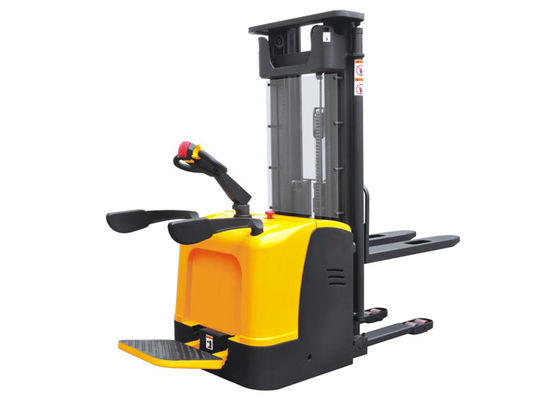

Automatic Ride On Electric Pallet Stacker AC Motor 1500kg Yellow Color

1 set
MOQ
negotiable
Price
Automatic Ride On Electric Pallet Stacker AC Motor 1500kg Yellow Color
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 1500kg
Max. Lifting Height: 2500-5600mm
Color: Yellow Or Customized
Aisle Width For Pallets 800*1200 Lengthways: 2515mm
Turning Radius: 1655mm
Battery: 24V240AH
Travel Speed, Laden/unladen: 6.5/6.7km/h
Service Weight: 1240-1580kg
High Light:

hydraulic pallet stacker

,

walk behind pallet stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE
Model Number: CDDK15
Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description



AC motor 1500kg rider electric pallet stacker using Germany Krupp mast


Quick Details:

Description: Electric Rider Stacker CDDK15
Capacity: 1500kg
Max. lifting height: 2500/3000/3300/3500/4500/5000/5600mm
Fork dimensions: 60/180/1070(1150)mm

Aisle width for pallets: 2515mm
Lifting speed, laden/unladen: 0.11/0.14m/s

Lowering speed, laden/unladen: 0.12/0.12m/s

Battery: 24V240AH






Advantages:

  • AC motor eliminates carbon brush replacement.
  • Multi function display instrument has electric power display, fault code display, working time cumulative display and fast/slow speed display.
  • The side door and the battery cover can be opened, the battery can pull out from the side, which is beneficial to the exchange and maintenance of the battery.
  • There is a shock absorber to reduce noise.
  • The handle is equipped with emergency reverse switch, make the electric pallet stacker operation more safe.
  • The eletric pallet stacker is braked when the handle in both vertical and horizontal directions, so as to improve the safety of the whole vehicle.
  • Emergency power off switch.
  • Automatic deceleration function.
  • Built in unloading valve to protect the eletric pallet stacker from overloading and improve reliability.
  • Stepless speed change control.
  • Low center of gravity.
  • Vertical driving wheel.
  • Frame and mast is separable.
  • Free lift.
  • Strong imported mast.
  • CANbus technology.
SPECIFICATIONS OF RIDER ELECTRIC PALLET STACKER
Model   CDDK15
Load capacity kg 1500
Load center distance mm 600
Load distance, centre of drive axle to fork mm 672
Fork height, lowered mm 85
Tyre size, front mm 250*70
Tyre size, rear mm 80*84
Additional wheels (dimensions) mm 150*60
Height, mast lowered mm 1735/1985/2135/2235/2050/2210/2410
Free lift (option 2500-3500mm) mm 1300/1550/1700/1800/1570/1740/1940
Max. lifting height mm 2500/3000/3300/3500/4500/5000/5600
Height, mast extended mm 2955/3455/3755/3955/5030/5510/6110
Initial lift mm 1150/1450
Overall length mm 2020/2100
Length to face of forks mm 950
Overall width mm 850
Fork dimensions mm 60/180/1070(1150)
Width overall forks mm 570/695
Aisle width for pallets 800*1200 lengthways mm 2515
Turning radius mm 1655
Travel speed, laden/unladen km/h 6.5/6.7
Lift speed, laden/unladen m/s 0.11/0.14
Lowering speed, laden/unladen m/s 0.12/0.12
Battery V/Ah 24/240
Service weight kg 1180/1205/1220/1230/1280/1300/1320





Automatic Ride On Electric Pallet Stacker AC Motor 1500kg Yellow Color 0







Automatic Ride On Electric Pallet Stacker AC Motor 1500kg Yellow Color 1
