Quick Details:

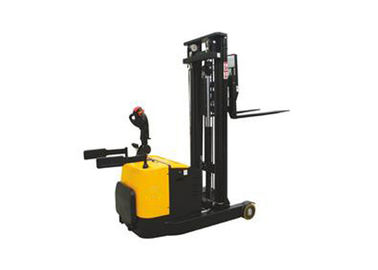

Description: Mast reach type electric pallet stacker QDA15Q
Capacity: 1500kg
Max. lifting height: 5500mm
Reach distance: 500mm
Aisle width for pallets 1000*1200 crossways: 2460mm
Aisle width for pallets 800*1200 lengthways: 2560mm
Drive motor power: 1.5kw
Lift motor power: 4.5kw
Max. lifting height of 5500mm enables for wide applications in warehouse and storage.
Advantages:
SPECIFICATIONS | ||
Model | QDA15Q | |
Driving type | Electric | |
Operating | Standing | |
Rated capacity | kg | 1500 |
Load center distance | mm | 500 |
Load distance, centre of drive axle to fork | mm | 445 |
Wheelbase | mm | 1280 |
Wheels | polyurethane wheel | |
Wheel dimension, front | mm | 250*75 |
Wheel dimension, rear | mm | 210*85 |
Thread, rear | mm | 895 |
Max. lifting height | mm | 5500 |
Lowered mast height | mm | 2340 |
Extended mast height | mm | 6260 |
Height, fork lowered | mm | 35 |
Reach distance | mm | 500 |
Overall length | mm | 2260 |
Overall width | mm | 980 |
Forks dimension | mm | 35/100/1070 |
Forks width | mm | 200-680 |
Ground clearance | mm | 50-110 |
Aisle width, with pallet 1000*1200 crosswise | mm | 2460 |
Aisle width, with pallet 800*1200 lengthwise | mm | 2560 |
Turning radius | mm | 1500 |
Max. Gradient, load/unload | % | 5/8 |
Travel brake | electric regenerative braking | |
Driving motor power | kw | 1.5 |
Lifting motor power | kw | 4.5 |
Battery | V/Ah | 24/210 |
Turing mode | Electronic steering | |
Service weight | kg | 1950 |
