Double Lift Cylinder High Lift Pallet Stacker 3500mm Lifting Height Safe Operation

1 set
Double Lift Cylinder High Lift Pallet Stacker 3500mm Lifting Height Safe Operation
Features Gallery Product Description Request A Quote
Capacity: 2000kg
Max. Lifting Height: 3500mm
Load Center: 600mm
Lowered Mast Height: 2265mm
Extended Mast Height: 4050mm
Fork Dimension: 60/170/1150mm
Width Over Forks: 570/685mm
Turning Radius: 1600mm
High Light:

hydraulic pallet stacker


walk behind pallet stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE
Model Number: QDA20
Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description

3500mm double lift cylinder design electric pallet stacker with electronic steering system

Quick Details:
Description: electric pallet stacker QDA20
Capacity: 2000kg
Max. lifting height: 3500mm
Width overall forks: 570/685mm
Aisle width for pallets 1000*1200 crossways: 2420mm

Aisle width for pallets 800*1200 lengthways: 2360mm
Drive motor power: 1.5kw
Lift motor power: 3.3kw


With electronic steering system, the operation is more relaxed, more flexible steering.



​     Easy maintenance

  • AC drive motor, without carbon brush, basically no maintenance, greatly reduce maintenance costs. The use of the vertical motor makes the detection and maintenance of the motor and the brake more convenient and the performance of maintenance is much better than that of the horizontal motor.
  • The design of integral microswitch is very easy to replace.
  • The battery box cover is easy to open, and it is convenient to add distilled water or electrolyte to the battery.
  • The timer and meter are displayed as standard, which is convenient for reminding the operator to charge the battery in time.
  • The controller self diagnosis system solves the fault more conveniently by displaying the fault codes through the handheld unit. ​​

      High performance

  • High quality hydraulic station, low noise, low vibration, tightness, automatic adjustment of down speed, ensure stable and reliable lifting speed.
  • Accurate electronic limit switch, accurately control the maximum lifting height, to prevent damage to the motor.

      Safe and convenient operation

  • Emergency reverse running function.
  • Emergency power off switch as standard configuration.
  • The German import control handle is convenient to operate with left or right hands. All operation functions can be easily realized on the handle with simple buttons, so as to improve driving comfort.

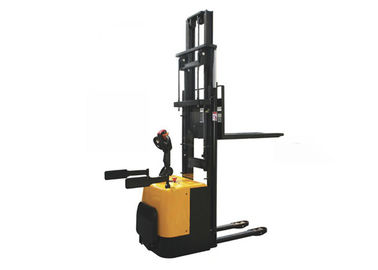

Double Lift Cylinder High Lift Pallet Stacker 3500mm Lifting Height Safe Operation 0


Cecification 1.2 Model   QDA
1.3 Driving Model: Electric(Storage battery), Diesel, Gasoline, Fuel gas   Electric
1.4 Operating(Manual, Walking, Stand driving, Seat driving ,Order picking)   Standing Driving
1.5 Rated Capacity Q(kg) 2000
1.6 Load Center Distance c(mm) 600
1.7 Wheel Base Y(mm) 1355
weight 2.1 Service Weight(with battery) kg 1050/1220
Chassis 3.1 Wheels (Rubber, Pneumatic Tyre, Polyurethane Wheel)   polyurethane
3.2 Wheel dimension, front mm 248*75
3.3 Wheel dimension, rear mm 80*70
3.4 Additional Wheel mm 115*50
3.5 Wheel number, front/rear (x = driving wheel)   1x+2/4
3.6 Thread, front b10(mm) 632
3.7 Thread, rear b11(mm) 500
Dimension 4.1 Retracted height h1(mm) 2235
4.2 Max. Lift Height h3(mm) 3500
4.3 Extended Mast Height h4(mm) 4080
4.4 Height, Fork Lowered h13(mm) 85
4.5 Overall Length l1(mm) 2050
4.6 Overall Width b1(mm) 850
4.7 Fork dimension S/e/l(mm) 55/185/1150
4.8 Fork width b5(mm) 570/685
4.9 Ground Clearance m2(mm) 25
4.1 Aisle Width, with pallet 1000x1200 crosswise Ast(mm) 2420
4.11 Aisle Width, with pallet 800x1200 lengthwise Ast(mm) 2360
4.12 Turning Radius Wa(mm) 1580
Performance Data 5.1 Traveling speed, full load/no-load Km/h 4/4.5
5.2 Lifting speed, full load/no-load m/s 0.1/0.12-0.08/0.1
5.3 Descending speed, full load/no-load m/s 0.15/0.12-0.12/0.1
5.4 Max. Gradient, load/unload % 8/10
5.5 Traveling Brake   Electromagnetic brake
Motor 6.1 Driving Motor Power kW 1.5
6.2 Lifting Motor Power kW 3
6.3 Battery Voltage/Rated Capacity V/Ah 24/240
6.4 Turing Mode   Electric Power system
