Straddle Legs Electric Lift Pallet Stacker Safe Design Adjustable Forks

1 set
Straddle Legs Electric Lift Pallet Stacker Safe Design Adjustable Forks
Features Gallery Product Description Request A Quote
Capacity: 1500kg
Max. Lifting Height: 5600mm
Mast Height Lowered: 2480mm
Free Lift: 1940mm
Mast Height Extended: 6180mm
Fork Dimension: 35/100/1070(1150)mm
Aisle Width: 2465mm
Battery: 24V240AH
High Light:

hydraulic pallet stacker


walk behind pallet stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE
Model Number: CTDR15
Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description



1500kg AC control electric pallet stacker with straddle legs and adjustable forks


Quick Details:
Description: electric pallet stacker with straddle legs
Capacity: 1500kg
Max. lifting height: 5600mm
Width overall forks: 200-800mm
Travel speed, laden/unladen: 5.8/6km/h
Lifting speed, laden/unladen: 0.11/0.14m/s
Lowering speed, laden/unladen: 0.12/0.12m/s
Battery: 24V240AH



Straddle legs with adjustable forks



​     Safe and efficient design

  • The handle is provided with an emergency reverse switch, make the electric pallet stacker operation more safe.
  • Built in unloading valve to protect the electric pallet stacker from overloading and improve the reliability of it.
  • Emergency power off switch, stepless speed change control.
  • Both the side door and the battery cover can be opened, and the battery can be pulled out from the side, which is beneficial to the exchange and maintenance of the battery.​​

      Structural optimization design

  • Low center of gravity design, with good stability.
  • The vertical driving wheel, the driving unit with small turning radius and wheel replacement and maintenance is simple and convenient, the motor has better dustproof, waterproof effect, so that the brake and motor is more durable, reliability is being improved.
  • The adjustable balance wheel structure makes the four points in one plane and has good stability.

      Easy maintenance design

  • Low voltage protection design to make the battery service life longer.
  • The electric whole design pattern, the line is clean and tidy, beautiful, assemble, debug, the maintenance is convenient.
  • CANbus technology simplifies the line and enhances the reliability of the whole electric pallet stacker.
  • Holzer sensors reduce wear and tear of electronic components and increase service life.


​     AC

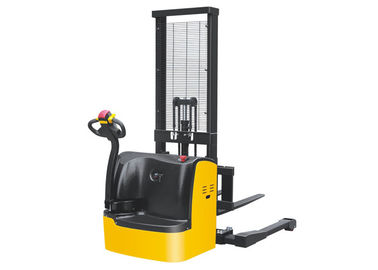

 Straddle Legs Electric Lift Pallet Stacker Safe Design Adjustable Forks 0


Model   CTDR15-II
Load capacity kg 1500
Load center distance mm 600
Load distance, centre of drive axle to fork mm 677
Fork height, lowered mm 70
Tyre size, front mm 250*70
Tyre size, rear mm 80*84
Additional wheels (dimensions) mm 150*60
Height, mast lowered mm 2480
Free lift (option 2500-3500mm) mm 1940
Max. lifting height mm 5600
Height, mast extended mm 6180
Height of tiller in drive position min./max. mm 670/1300
Overall length mm 1980
Length to face of forks mm 915
Overall width mm 1560
Fork dimensions mm 35/100/1070(1150)
Width overall forks mm 200-800
Aisle width for pallets 800*1200 lengthways mm 2465
Turning radius mm 1610
Travel speed, laden/unladen km/h 5.8/6
Lift speed, laden/unladen m/s 0.11/0.14
Lowering speed, laden/unladen m/s 0.12/0.12
Battery V/Ah 24/240
Service weight kg 1450
