Durable Counterbalance Pallet Stacker , Walkie Stacker Forklift Compact Structure

1 set
Durable Counterbalance Pallet Stacker , Walkie Stacker Forklift Compact Structure
Features Gallery Product Description Request A Quote
Capacity: 1500kg
Max. Lifting Height: 5600mm
Height, Mast Lowered: 2435mm
Free Lift (option): 1870mm
Height, Mast Extended: 6600mm
Fork Dimension: 35/100/950(1070)mm
Aisle Width: 3120mm
Battery: 24V320AH
High Light:

hydraulic pallet stacker


walk behind pallet stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE
Model Number: CPD15R
Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description


Counterbalanced 1500kg 5600mm electric pallet stacker with Germany imported steel mast

Quick Details:
Description: Counterbalanced 1500kg 5600mm electric pallet stacker
Capacity: 1500kg
Max. lifting height: 5600mm
Aisle width for pallets 800*1200 lengthways: 3120mm
Travel speed, laden/unladen: 6.8/7km/h
Lifting speed, laden/unladen: 0.12/0.19m/s
Lowering speed, laden/unladen: 0.42/0.41m/s
Battery: 24V320AH



​     Safe and efficient design

  • Vertical drive wheel, excellent performance, stable and reliable quality.
  • Import AC control system: Quick response, less maintenance and noise, both from low speed to high speed or from high speed to low speed, it has powerful control ability. ​​

      Structural optimization design

  • Imported handle assembly, stable and flexible.
  • Imported steel mast, safe and beautiful, durable.
  • The forks can tilt forward and backward.
  • Rear counterweight, no front legs.

          a. The forks can enter the bottom of the cargo which has little clearance from the ground.

          b. It is easy to load goods in any kind of warehouse.


      Easy maintenance design

  • Compact structure, high performance, regenerative braking and easy maintenance.
  • Large capacity storage battery is adopted to ensure the power is strong and durable, and the charging is convenient and quick. The battery is pulled out from the side, which is beneficial to the exchange and maintenance of the battery.
  • Low voltage protection function, protect the battery when the voltage is lower than the using voltage, and extend the service life.



  • ​​Electric steering.
  • EPS.

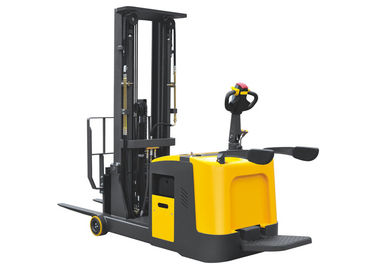

Durable Counterbalance Pallet Stacker , Walkie Stacker Forklift Compact Structure 0

Model   CPD15R
Load capacity kg 1500
Load center distance mm 500
Load distance mm 130
Tyre size, front mm 250*70
Tyre size, rear mm 200*100
Additional wheels (dimensions) mm 150*60
Fork, tilt forward/backward ° 3/6
Height, mast lowered mm 1735/1985/2235/1895/2085/2235/2435
Free lift (option) mm 0/0/0/1400/1500/1670/1870
Max. lifting height mm 2500/3000/3500/4000/4500/5000/5600
Height, mast extended mm 3500/4000/4500/5000/5500/6000/6600
Height of tiller in drive position min./max. mm 1160/1460
Overall length mm 2660
Length to face of forks mm 1700
Overall width mm 990
Fork dimensions mm 35/100/950(1070)
Width overall forks mm 220-680
Aisle width for pallets 800*1200 lengthways mm 3120
Turning radius mm 1600
Travel speed, laden/unladen km/h 6.8/7
Lift speed, laden/unladen m/s 0.12/0.19
Lowering speed, laden/unladen m/s 0.42/0.41
Battery V/Ah 24/320
Service weight kg 2030
