Single Column Walkie Electric Pallet Stacker 1 Ton With Wide View Mast

1 set
MOQ
negotiable
Price
Single Column Walkie Electric Pallet Stacker 1 Ton With Wide View Mast
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 1000kg
Max. Lifting Height: 1600/1950mm
Height, Mast Lowered: 1980/2330mm
Height, Mast Extended: 1980/2330mm
Fork Dimension: 60/170/1070(1150)mm
Width Overall Forks: 570mm
Aisle Width: 2220mm
Battery: 24V65AH
High Light:

hydraulic pallet stacker

,

straddle pallet stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE
Model Number: CDDRD10
Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description



Single column walkie electric pallet stacker 1000kg with wide view mast


Quick Details:

Description: Single Column Walkie Electric Pallet Stacker
Capacity: 1000kg
Max. lifting height: 1600/1950mm
Aisle width for pallets 800*1200 lengthways: 2220mm
Travel speed, laden/unladen: 5.3/5.6km/h
Lifting speed, laden/unladen: 0.11/0.19m/s
Lowering speed, laden/unladen: 0.16/0.11m/s
Battery: 24V65AH


Advantages:



​     Safety and productivity

  • ​​This single column electric pallet stacker is mainly suitable for flat ground operation, especially for floor and container operation.
  • This single column electric pallet stacker adopts the most advanced permanent magnetic brushless drive motor, without carbon brush, maintenance free, good regenerative braking function and ramp suppression function. Excellent driving control.
  • The driving mechanism adopts a vertical structure driving unit; the whole driving unit has small turning radius, low running noise and convenient wheel replacement and maintenance.
  • The internal structure is clean and orderly, easy to maintain and overhaul.
  • Low center of gravity design, electric pallet stacker stability is good.
  • With smaller turning radius.
  • Single column frame design, wide view mast.
  • It has shock absorber and noise reduction.
  • Equipped with low voltage protection system, effectively prolong the service life of battery.
  • The balance wheel is adjustable (when the wheel is worn, the balance wheel can be adjusted to reach the balance of the electric pallet stacker body)
  • The die installation design of hydraulic station has the advantages of noise reduction, convenient maintenance and overhaul.
  • Electrical modular design, components of the integration of 90%, easy maintenance.



Option:

  • ​​1200kg.


Single column walkie stacker with wide view mast and low service weight, mainly used in very confined warehouses and double decker workshops suit for indoor and outdoor using and short-distance traveling operation. Particularly for low-force withstanding floors.

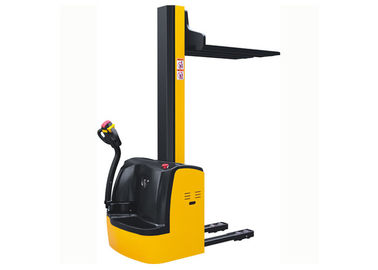

Single Column Walkie Electric Pallet Stacker 1 Ton With Wide View Mast 0



SPECIFICATIONS
Model   CDDRD10
Load capacity kg 1000
Load center mm 600
Fork hanging distance mm 630
Tyre size, front mm 250*70
Tyre size, rear mm 80*70
Additional wheels (dimensions) mm 150*60
Height, mast lowered mm 1980/2330
Max. lifting height mm 1600/1950
Height, mast extended mm 1980/2330
Height of tiller in drive position min./max. mm 670/1300
Fork height, lowered mm 90
Overall length mm 1780/1860
Length to face of forks mm 708
Overall width mm 820
Fork dimensions mm 60/170/1070(1150)
Width overall forks mm 570
Aisle width for pallets 800*1200 lengthways mm 2220
Turning radius mm 1338
Travel speed, laden/unladen km/h 5.3/5.6
Lift speed, laden/unladen m/s 0.11/0.19
Lowering speed, laden/unladen m/s 0.16/0.11
Battery V/Ah 24/65
Service weight kg 580
