Double Design Electric Pallet Truck Stacker With Initial Lift High Performance
  • name
  • name
  • name

Double Design Electric Pallet Truck Stacker With Initial Lift High Performance

MOQ: 1 set
Price: negotiable
Standard Packaging: 1set / pallet
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 200 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE
Model Number
CDDK15S
Capacity:
1500kg
Max. Lifting Height:
3500mm
Free Lift:
1800mm
Initial Lift:
120mm
Fork Dimension:
60/180/1070(1150)mm
Width Overall Forks:
570/650mm
Aisle Width:
2575mm
Battery:
24V240AH
Highlight:

hydraulic pallet stacker

,

walk behind pallet stacker

Product Description



1500kg double pallet design electric pallet stacker with initial lift


Quick Details:

Description: full electric pallet stacker with initial lift
Capacity: 2000kg
Max. lifting height: 3500mm
Free lift: 1800mm
Initial lift: 120mm
Aisle width for pallets 800*1200 lengthways: 2575mm
Travel speed, laden/unladen: 6.2/6.5km/h
Lifting speed, laden/unladen: 0.11/0.14m/s
Lowering speed, laden/unladen: 0.12/0.12m/s
Battery: 24V240AH


Advantages:​

  • ​​​The 4-points support structure with side tiller, low center of gravity design with excellent stability.
  • Double pallet design: two pallet handled at one time, initial lift of load leg increases ground clearance to negotiate easily ramps, dock levelers and bridging plates.
  • Vertical driving wheel, offer small turning radius, dustproof waterproof motor, easy for maintenance.
  • AC motor without carbon brush, good ramp braking performance, efficient electromagnetic parking brake.
  • Free lifting mast with two side cylinders offers wide view for operators.



Option:

  • ​​​Walking type.


This heavy stacker includes two models with a rated load capacity of 1500kgs. Specially designed for intensive stocking operations at medium height wareghouse. 2000kgs load can be transported using the initial lift function.

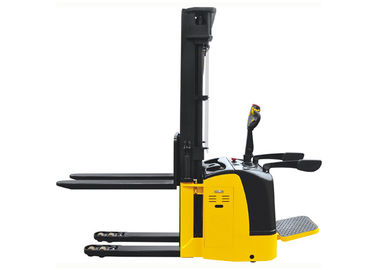

Double Design Electric Pallet Truck Stacker With Initial Lift High Performance 0



SPECIFICATIONS
Model CDDK15S
Drive type Electric
Operate type Standing
Load capacitykg1500
Load center distancemm600
Fork overhangmm768
Wheelbasemm1510
Axle load, full loaden front/rearkg899/1141
Axle load, unloaden front/rearkg729/291
Wheels PU
Wheel size, frontmm250*70
Wheel size, rearmm80*70
Additional wheels (dimensions)mm150*47
Front wheel treadmm540
Rear wheel treadmm390
Height, mast loweredmm2257
Free liftmm1800
Max. lifting heightmm3500
Initial liftmm120
Overall lengthmm2058
Length to face of forksmm988
Overall widthmm850
Fork dimensionsmm60/180/1070(1150)
Width overall forksmm570/650
Aisle width for pallets 1000*1200 crosswaysmm2631
Aisle width for pallets 800*1200 lengthwaysmm2575
Turning radiusmm1786
Travel speed, laden/unladenkm/h6.2/6.5
Lift speed, laden/unladenm/s0.11/0.14
Lowering speed, laden/unladenm/s0.12/0.12
Max. gradient, laden/unladen%8/15
Service brake Electromagnetic braking
Drive motor powerkw1.5
Lift motor powerkw2.2
BatteryV/Ah24/240
Service weightkg1260






Tags:

straddle pallet stacker,

walk behind pallet stacker,

hydraulic pallet stacker
