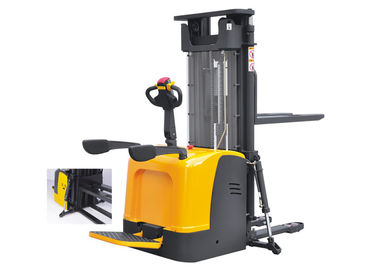

High Load Capacity Full Electric Pallet Stacker With Mast Stable Operation

1 set
High Load Capacity Full Electric Pallet Stacker With Mast Stable Operation
Features Gallery Product Description Request A Quote
Capacity: 2000kg
Max. Lifting Height: 5600mm
Height, Mast Lowered: 2410mm
Height, Mast Extended: 6150mm
Free Lift: 1940mm
Aisle Width: 2515mm
Travel Speed, Laden/unladen: 5.8/6km/h
Battery: 24V300AH
High Light:

straddle pallet stacker


walk behind pallet stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE
Model Number: CDD20K
Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Product Description


2 ton high load capacity electric pallet stacker with imported mast at high lifting height 5.6m


Quick Details:


Description: full electric pallet stacker

Capacity: 2000kg

Max. lifting height: 5600mm

Free lift: 1940mm

Aisle width for pallets 800*1200 lengthways: 2515mm

Travel speed, laden/unladen: 5.8/6km/h

Lifting speed, laden/unladen: 0.09/0.11m/s

Lowering speed, laden/unladen: 0.12/0.11m/s

Battery: 24V300AH





​     Safety and Productivity

  • ​​AC Motor eliminates replacement of carbon brush, make maintenance very convenient.
  • The multi-function display instrument has power display, fault indication, working time cumulative display and fast slow display.
  • The side door and the battery cover can be opened. The battery can be pulled out from the side to facilitate the exchange and maintenance of the battery.
  • It has shock absorbers to reduce noise.
  • Emergency reversing device in the handle provides higher safety for the whole operation.
  • The automatic deceleration function makes the operation safer.

      Optimum Structural Design

  • ​​Low center of gravity ensures the stable operation.
  • Vertical driving wheel ensures convenient maintenance and small turning radius. Water-proof and dust-proof motor structure, keeps the braking and motor more durable and reliable.
  • The frame and mast are dividable and exchangeable.
  • Full free lifting. fit for working in low roof house.


  • ​​Low voltage protection setting prolongs the battery use time.
  • The electronic components' concentrated design simplify the circuit and makes easy access to assemble, debug and maintain.
  • CANbus technology reduces wiring comlexity and increase reliability.
  • Hall element reduces wear components, resulting in increased component life.




  • ​​Adjustable forks.
  • Straddle legs.

High Load Capacity Full Electric Pallet Stacker With Mast Stable Operation 0


Model   CDDK20
Load capacity kg 2000
Load center distance mm 600
Load distance mm 672
Tyre size, front mm 250*70
Tyre size, rear mm 80*84
Additional wheels (dimensions) mm 150*60
Height, mast lowered mm 1735/1985/2135/2235/2050/2210/2410
Free lift (option) mm 1300/1550/1700/1800/1570/1740/1940
Max. lifting height mm 2500/3000/3300/3500/4500/5000/5600
Height, mast extended mm 2955/3455/3755/3955/5070/5550/6150
Initial lift mm 1150/1450
Fork height, lowered mm 90
Overall length mm 2020/2100
Length to face of forks mm 950
Overall width mm 850
Fork dimensions mm 60/180/1070(1150)
Width overall forks mm 570/695
Aisle width for pallets 800*1200 lengthways mm 2515
Turning radius mm 1655
Travel speed, laden/unladen km/h 5.8/6
Lift speed, laden/unladen m/s 0.09/0.11
Lowering speed, laden/unladen m/s 0.12/0.11
Battery V/Ah 24/300
Service weight kg 1550



High Load Capacity Full Electric Pallet Stacker With Mast Stable Operation 1



High Load Capacity Full Electric Pallet Stacker With Mast Stable Operation 2
