Foot Brake Electric Stacker Truck , High Capacity Semi Electric Stacker
  • name
  • name

Foot Brake Electric Stacker Truck , High Capacity Semi Electric Stacker

MOQ: 1 set
Price: negotiable
Standard Packaging: 1set / pallet
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 200 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE
Model Number
BDA1530
Capacity:
1500kg
Max. Lifting Height:
3000mm
Height, Mast Lowered:
2085mm
Height, Mast Extended:
3550mm
Width Overall Forks:
550/660mm
Turning Radius:
1415mm
Lift Speed, Laden/unladen:
0.135/0.15m/s
Lowering Speed, Laden/unladen:
Manual
Highlight:

straddle pallet stacker

,

walk behind pallet stacker

Product Description

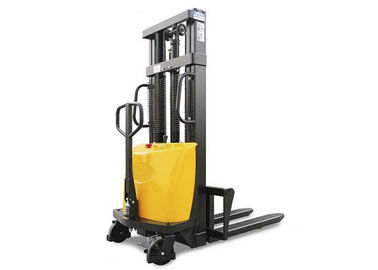

1500kg 3000mm foot brake semi-electric pallet stacker with strong mast material





Quick Details:



Description: semi-electric pallet stacker

Capacity: 1500kg

Max. lifting height: 3000mm

Turning radius: 1415mm

Lift speed, laden/unladen: 0.135/0.15m/s

Lowering speed, laden/unladen: manual





Advantages:

  • ​​​Strong mast material ensure high capacity.
  • Explosion-proof valve in the pump, to avoid rapid decline to ensure the operator's safety.
  • Over-discharge protection device greatly extends battery life.
  • Foot brake is simple and easy to maintain.





Option:

  • ​​​Adjustable forks.
  • Straddle legs.

Foot Brake Electric Stacker Truck , High Capacity Semi Electric Stacker 0



SPECIFICATIONS
Model   BDA
Driving style   Manual
Load capacity kg 1500
Load center distance mm 500
Wheel   Nylon/PU
Tyre size, front mm 180*50
Tyre size, rear mm 80*70
Lowered mast height mm 2085
Max. lifting height mm 3000
Extended mast height mm 3550
Lowered fork height mm 90
Overall length mm 1735
Overall width mm 800
Fork length mm 900/1070
Width overall forks mm 660
Ground clearance mm 26
Aisle width for pallets 1000*1200 crossways mm 1705
Aisle width for pallets 800*1200 lengthways mm 1755
Turning radius mm 1415
Lift speed, laden/unladen m/s 0.135/0.15
Lowering speed, laden/unladen m/s manual control
Battery V/Ah 12/110
Service weight kg 450





Foot Brake Electric Stacker Truck , High Capacity Semi Electric Stacker 1



Foot Brake Electric Stacker Truck , High Capacity Semi Electric Stacker 2



Tags:

straddle pallet stacker,

walk behind pallet stacker,

hydraulic pallet stacker
