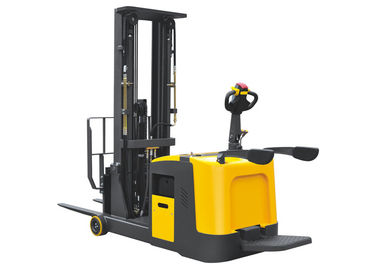

Durable Counterbalance Pallet Stacker , Walkie Stacker Forklift Compact Structure

Products

Durable Counterbalance Pallet Stacker , Walkie Stacker Forklift Compact Structure

MOQ:	1 set
Price:	negotiable
Standard Packaging:	1set / pallet
Delivery Period:	25 - 30 days
Payment Method:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

Zhejiang, China

Brand Name

REACH

Certification

Model Number

CPD15R

Capacity:

1500kg

Max. Lifting Height:

5600mm

Height, Mast Lowered:

2435mm

Free Lift (option):

1870mm

Height, Mast Extended:

6600mm

Fork Dimension:

35/100/950(1070)mm

Aisle Width:

3120mm

Battery:

24V320AH

Highlight:

hydraulic pallet stacker

walk behind pallet stacker

Product Description

Counterbalanced 1500kg 5600mm electric pallet stacker with Germany imported steel mast

Quick Details:

Description: Counterbalanced 1500kg 5600mm electric pallet stacker
Capacity: 1500kg
Max. lifting height: 5600mm
Aisle width for pallets 800*1200 lengthways: 3120mm
Travel speed, laden/unladen: 6.8/7km/h
Lifting speed, laden/unladen: 0.12/0.19m/s
Lowering speed, laden/unladen: 0.42/0.41m/s
Battery: 24V320AH

Advantages:

Safe and efficient design

Vertical drive wheel, excellent performance, stable and reliable quality.
Import AC control system: Quick response, less maintenance and noise, both from low speed to high speed or from high speed to low speed, it has powerful control ability.

Structural optimization design

Imported handle assembly, stable and flexible.
Imported steel mast, safe and beautiful, durable.
The forks can tilt forward and backward.
Rear counterweight, no front legs.

a. The forks can enter the bottom of the cargo which has little clearance from the ground.

b. It is easy to load goods in any kind of warehouse.

Easy maintenance design

Compact structure, high performance, regenerative braking and easy maintenance.
Large capacity storage battery is adopted to ensure the power is strong and durable, and the charging is convenient and quick. The battery is pulled out from the side, which is beneficial to the exchange and maintenance of the battery.
Low voltage protection function, protect the battery when the voltage is lower than the using voltage, and extend the service life.

Option:

Electric steering.
EPS.

Durable Counterbalance Pallet Stacker , Walkie Stacker Forklift Compact Structure 0

SPECIFICATIONS
Model		CPD15R
Load capacity	kg	1500
Load center distance	mm	500
Load distance	mm	130
Tyre size, front	mm	250*70
Tyre size, rear	mm	200*100
Additional wheels (dimensions)	mm	150*60
Fork, tilt forward/backward	°	3/6
Height, mast lowered	mm	1735/1985/2235/1895/2085/2235/2435
Free lift (option)	mm	0/0/0/1400/1500/1670/1870
Max. lifting height	mm	2500/3000/3500/4000/4500/5000/5600
Height, mast extended	mm	3500/4000/4500/5000/5500/6000/6600
Height of tiller in drive position min./max.	mm	1160/1460
Overall length	mm	2660
Length to face of forks	mm	1700
Overall width	mm	990
Fork dimensions	mm	35/100/950(1070)
Width overall forks	mm	220-680
Aisle width for pallets 800*1200 lengthways	mm	3120
Turning radius	mm	1600
Travel speed, laden/unladen	km/h	6.8/7
Lift speed, laden/unladen	m/s	0.12/0.19
Lowering speed, laden/unladen	m/s	0.42/0.41
Battery	V/Ah	24/320
Service weight	kg	2030
