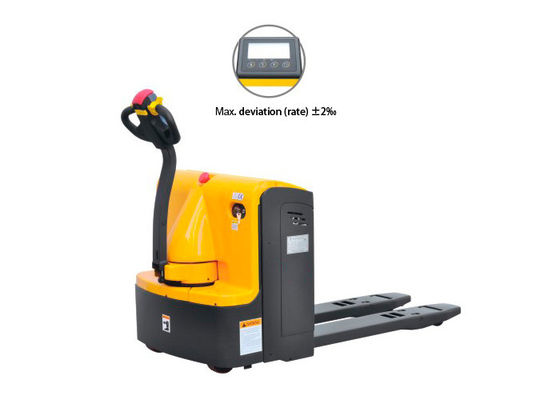

Super light walkie type electric pallet truck 1800kg with side way battery
Specification
| SPECIFICATIONS | ||
| Model | CBD18KD | |
| Battery type | 1 set side way battery | |
| Load capacity/rated load | kg/lbs | 1800/4000 |
| Load center distance | mm/inch | 600/23.6 |
| Fork height, lowered | mm/inch | 84/3.3 |
| Max. lifting height | mm/inch | 204/8.03 |
| Fork dimensions | mm/inch | 54/150/1150(2.1/5.9/45) |
| Width overall forks | mm/inch | 550/22 |
| Aisle width for pallets 800*1200 lengthways | mm/inch | 1913/75.3 |
| Travel speed, laden/unladen | km/h | 5.5/5.6 |
| Battery | V/Ah | 24/160 |
Advantage
Water-proof and dust proof vertical driving wheel offers small turning radius.
The riser axle located at the highest point of forks, protects riser axles from constant contact by uneven floor. Pull rod design against bending.
Spring-loaded castors improve lateral stability on uneven floors and enhance truck performance and service life.
Formed heavy gauge steel for maximum strength forks.
