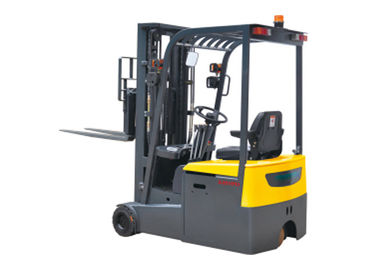

Rear Wheel Drive Electric Forklift Truck Seated With Side Shift TUV Certification
1 set
MOQ
Negotiable
Price
Rear Wheel Drive Electric Forklift Truck Seated With Side Shift TUV Certification
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: CPD15S-E
High Light:

electric powered forklift

,

counterbalance forklift truck

,

TUV Certification Electric Forklift Truck

Payment & Shipping Terms
Packaging Details: Nude
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Specifications
Drive: One Rear Driving Wheel
Operation Type: Seated
Capacity: 1500kg
Lift Height: 2500-5600mm
Fork Dimensions: 35/100/950(1070)mm
Turning Radius: 1550mm
Battery: 24V320(400)AH
Service Weight: 2500kg
Product Description



Rear wheel drive seated 1.5ton electric forklift truck with side shift​


Quick Details:


Model: One rear driving wheel electric forklift truck CPD15S-E

​​​Capacity: 1500kg

Lift height: 2500-5600mm

Aisle width for pallets 1000*1200 crossways: 3050mm

Aisle width for pallets 800*1200 lengthways: 3150mm

Turning radius: 1550mm

Travel speed, laden/unladen: 6.8/7km/h

Battery: 24V320(400)AH



Advantages:


  • Using the rear wheel drive design of the company's independent research and development, the technology is mature, the quality is stable, the turning radius is small, and it has good performance.

  • The whole electric forklift truck wheel has rubber wheel, which has good shock resistance and small noise. It is suitable for indoor, outdoor and other different ground use.

  • All the panels are made of iron plate, and the durability is good.

  • The lifting height is 2.5M-5.6M, and all free lifting is selected. In addition, different genera, including pitch fork, etc. can be added.

  • The electric forklift truck adopts a combined lighting system, which has the quality of the high grade model and the compact and compact appearance.

  • The battery is pulled side by side and the battery is easy to replace.

  • The selection function has cold storage vehicle, all communication.

  • The electric brake is used as a parking brake, and the operation is convenient and safe.

  • The electric forklift truck uses hydraulic power steering, turns light and has a steering priority.



Rear Wheel Drive Electric Forklift Truck Seated With Side Shift TUV Certification 0
       Rubber wheel, good shock resistance,             Side-way battery, is easy to change.
       small noise.


SPECIFICATIONS
Model   CPD15S-E
Drive   Rear Wheel Drive
Operation type   seated
Load capacity/rated load kg 1500
Load center distance mm 500
Load distance, centre of drive axle to fork mm 170
Wheelbase mm 1348
Axle loading, laden front/rear kg 3280/710
Axle loading, unladen front/rear kg 975/1525
Tyres   super elastic solid tires
Tyre size, front mm 305*140
Tyre size, rear mm 285*160
Tread, front mm 912
Tread, rear mm 0
Tilt of mast/fork carriage forward/backward(α/β) ° 2/5
Height, mast lowered mm 1980(3m)
Free lift mm option
Lift height mm 2500-5600
Height, mast extended mm 3500-6600
Overall width mm 1055
Fork thickness mm 35
Fork width mm 100
Fork length mm 950(1070)
Fork carriage width mm 680
Ground clearance, laden, below mast mm 68
Ground clearance, centre of wheelbase mm 68
Aisle width for pallets 1000*1200 crossways mm 3050
Aisle width for pallets 800*1200 lengthways mm 3150
Turning radius mm 1550
Travel speed, laden/unladen km/h 6.8/7
Lift speed, laden/unladen mm/s 100/150
Climbing capacity, laden/unladen % 10/15
Battery V/Ah 24/320(400)
Sound level at the driver's ear acc. to DIN 12053 dB(A) 68
Service weight kg 2500


Rear Wheel Drive Electric Forklift Truck Seated With Side Shift TUV Certification 1Rear Wheel Drive Electric Forklift Truck Seated With Side Shift TUV Certification 2Rear Wheel Drive Electric Forklift Truck Seated With Side Shift TUV Certification 3
