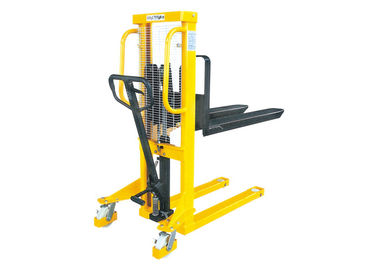

Hand Control Manual Pallet Stacker With Fixed Forks 500kg 1600mm Lifting Height

1 set
Hand Control Manual Pallet Stacker With Fixed Forks 500kg 1600mm Lifting Height
Features Gallery Product Description Request A Quote
Capacity: 500kg
Max. Lifting Height: 1600mm
Height, Mast Lowered: 2080mm
Height, Mast Extended: 2080mm
Width Overall Forks: 550mm
Turning Radius: 1380mm
Lift Speed, Laden/unladen: 25mm/time
Lowering Speed, Laden/unladen: Manual Control
Service Weight: 213kg
High Light:

manual hydraulic stacker


hand pallet stacker


1600mm Lifting Height manual pallet stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: SDJ500
Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets per month
Product Description


500kg 1600mm hand control manual pallet stacker with fixed forks


Quick Details:

Capacity: 500kg

Height, mast lowered: 2080mm

Max. lift height: 1600mm

Height, mast extended: 2080mm

​Fork dimensions: 61/170/1100(1150)mm

Width overall forks: 550mm

Aisle width for pallets 1000*1200 crossways:2112mm

​Aisle width for pallets 800*1200 lengthways: 1945mm

​Turning radius: 1380mm

​Lift speed, laden/unladen: 25mm/time




  • ​​Compact design for European pallet 550/580mm*1100/1150mm.

  • High quality steel mast and strong steel construction ensures rigidity and durability.

  • Welded forks deliver low-cost solution.

  • High efficient pumps makes the control easier to operate.

  • Foot and hand controlled lifting function allows the operator to work without having to perform extreme body movements.

  • Metal grid protects user from lift chains.

  • With safety wheel guard and brake system to ensure safety during operation.

  • ​Manual pallet truck SDJ series with fixed forks.

  • ​Operate in handle and foot pedal.

  • Optional in fixed or adjustable forks.



Model   SDJ500
Load capacity/rated load kg 500
Load center distance mm 600
Fork height, lowered mm 90
Height, mast lowered mm 2080
Max. lifting height mm 1600
Height, mast extended mm 2080
Overall length mm 1705
Overall width mm 755
Fork dimensions mm 61/170/1100(1150)
Width overall forks mm 550
Ground clearance, centre of wheelbase mm 25
Aisle width for pallets 1000*1200 crossways mm 2112
Aisle width for pallets 800*1200 lengthways mm 1945
Turning radius mm 1380
Lift speed, laden/unladen mm/time 25
Lowering speed, laden/unladen mm/s Manual control
Service weight kg 205
