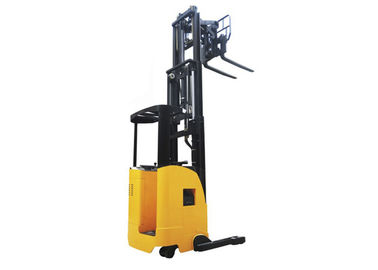

Electric Reach Narrow Aisle Truck AC Motor With Stepless Speed Control

1 set
Electric Reach Narrow Aisle Truck AC Motor With Stepless Speed Control
Features Gallery Product Description Request A Quote
Capacity: 1500kg
Max. Lifting Height: 3000/3500/4000mm
Height, Mast Lowered: 2125/2375/2625mm
Height, Mast Extended: 3881/4371/4881mm
Fork Dimensions: 35/100/1070mm
Reach Distance: 500mm
Travel Speed, Laden/unladen: 6.5/7km/h
Battery: 24V420(560)AH
High Light:

narrow aisle forklift truck


double reach forklift

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: CQDH15C
Payment & Shipping Terms
Packaging Details: Nude
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets per month
Product Description


Electric fork reach truck narrow aisle truck with stepless speed control



Quick Details:

Product name: electric narrow aisle truck CQDH15C

Capacity: 1500kg

Lifting height: 3000/3500/4000mm

Reach distance: 500mm

Aisle width for pallets 1000*1200 crossways: 2814mm

Aisle width for pallets 800*1200 lengthways: 2871mm

Turning radius: 1718mm

Battery: 24V420(560)AH




  • ​​Advanced AC control system eliminating the motor brushes and directional contactor, which makes the minimal maintenance requirements.

  • AC motor, no need to replace carbon brush.

  • Stepless speed control intellectualized regenerative brake system: increase overall truck performance by decreasing battery charge intervals.

  • Equipped with adjustable hand-rest, adapted to different operator.

  • Multi-function display: battery status, hour meter, fault indicator etc.

  • Two sides-way battery with roll-out system, which is very convenient to replace batteries.

  • Good ramp starting function.

  • Damping cushion for low-noise operation.

  • Built-in pressure relief valve protects the trucks from overloads.

  • Emergency power disconnect.





  • Straddle legs

  • Double scissors

  • Double front wheels

  • Full free lift masts

  • Side shift




Model   CQDH15C
Power   battery
Load capacity/rated load kg 1500
Load center distance mm 500
Load distance, centre of drive axle to fork mm 334
Tyre size, front mm 280*82+160*60
Tyre size, rear mm 125*82
Tilt of mast/fork carriage forward/backward Grad 2/5
Height, mast lowered mm 2125/2375/2625
Free lift mm ~
Max. lifting height mm 3000/3500/4000
Height, mast extended mm 3881/4381/4881
Height of overhead guard mm 2246
Overall length mm 2409
Overall width mm 1310/1040
Length to face of forks mm 1339
Fork dimensions mm 35/100/1070
Reach distance mm 500
Fork height, lowered mm 130
Distance of "X" mm 450
Overall length(excluding the fork) mm 1868
Ground clearance, centre of wheelbase mm 65
Aisle width for pallets 1000*1200 crossways mm 2814
Aisle width for pallets 800*1200 lengthways mm 2871
Turning radius mm 1718
Travel speed, laden/unladen km/h 6.5/7
Lift speed, laden/unladen m/s 0.135/0.16
Lowering speed, laden/unladen m/s 0.15/0.12
Battery V/Ah 24/420(560)
Service weight kg 2450/2500/2560
