Name: Four Way Traverse Pallet Truck , Pallet Pump Truck 74 * 70mm Fork Wheel
Brand: REACH
SKU: BFT
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (105 reviews)

Four Way Traverse Pallet Truck , Pallet Pump Truck 74 * 70mm Fork Wheel

6 sets

MOQ

Negotiable

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Capacity: 2500kg (1500kg Traverse)

Lowered Fork Height: 85/75mm

Lifting Height: 200/180mm

Fork Wheel Single: 80*70/74*70mm

Fork Wheel Tandem: 65*60mm(traverse Wheel)

Aisle Width For Pallets 1000*1200 Crossways: 1733/1803mm

Aisle Width For Pallets 800*1200 Lengthways: 1783/1803mm

Service Weight: 65-85kg

High Light:

low profile pallet jack

mobile pallet truck

Basic Infomation

Place of Origin: Zhejiang, China

Brand Name: REACH

Certification: CE, TUV

Model Number: BFT

Payment & Shipping Terms

Packaging Details: 6sets/pallet, 144 / 180sets for a 20ft container

Delivery Time: 25 - 30 days

Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability: 40000 sets per month

Gallery

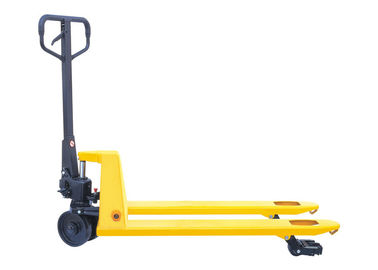

Four Way Traverse Pallet Truck , Pallet Pump Truck 74 * 70mm Fork Wheel

Product Description

Traverse four way hand pallet truck designed for moving long loads

Quick Details

Model: Traverse hand pallet truck (4-way) BFT

Capacity: 2500kg

Lowered fork height: 85/75mm

Total lift height: 200/180mm

Traverse wheel: 65*60mm

Fork dimension: 520/550/685*1150/1220mm

Turning radius: 1266/1336mm

Service weight: 65-85kg

Advantages:

Designed for moving long loads down narrow aisles.
Traverse movement effects when the fork height up to 180mm, and turn the handle by an angle of 90 degrees.
Traverse movement provides more flexibility and convenience of applications as condition changes.
Load capacity: 2500kg (1500kg traverse travelling).
Can work in an 1500mm width aisle.

SPECIFICATIONS OF TRAVERSE HAND PALLET TRUCK
Model		BFT
Load capacity	kg	2500(1500 traverse)
Lowered fork height	mm	85/75
Steering wheel	mm	200/180
Fork wheel single	mm	8070/7470(fork wheel)
Fork wheel tandem	mm	65*60(traverse wheel)
Max. lifting height	mm	200/190
Total height	mm	1224/1214
Overall length	mm	1533/1603
Fork length	mm	1150/1220
Width overall forks	mm	520/550/685
Ground clearance, centre of wheelbase	mm	40/30
Aisle width for pallets 1000*1200 crossways	mm	1733/1803
Aisle width for pallets 800*1200 lengthways	mm	1783/1803
Turning radius	mm	1266/1336
Service weight	kg	65-85

Four Way Traverse Pallet Truck , Pallet Pump Truck 74 * 70mm Fork Wheel 0

Tag:

low profile pallet jack

manual pallet jack

mobile pallet truck

Contact Person :

Rachel Ge

Tel :

86-13585605959

Fax :

86-21-51872729-816

Four Way Traverse Pallet Truck , Pallet Pump Truck 74 * 70mm Fork Wheel

low profile pallet jack

mobile pallet truck

Traverse four way hand pallet truck designed for moving long loads

Designed for moving long loads down narrow aisles.

Traverse movement effects when the fork height up to 180mm, and turn the handle by an angle of 90 degrees.

Traverse movement provides more flexibility and convenience of applications as condition changes.

Load capacity: 2500kg (1500kg traverse travelling).

Can work in an 1500mm width aisle.
