Automatical Hydraulic Scissor Dock Leveler With Electric Pump High Performance

1 set
MOQ
Negotiable
Price
Automatical Hydraulic Scissor Dock Leveler With Electric Pump High Performance
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 8000kg
Table Size: 2500*2000mm
Lifting Height, Up: 400mm
Lifting Height, Down: 300mm
Motor: 0.75kw
Voltage: 220/380V
Pithead Size: 2580*2040*600mm
Service Weight: 1150kg
High Light:

movable lift table

,

electric lift table

,

automatical hydraulic scissor dock leveler

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: DL
Payment & Shipping Terms
Packaging Details: 1pc/pallet, 8pcs/pallet,10pcs/pallet,16pcs/pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets per month
Product Description



8000kg dock leveler scissor lift table with electric hydraulic pump





Quick Details:

Model: Dock leveler scissor lift table DL

​Capacity: 8000kg

Table size: 2500*2000mm

Lifting height, up: 400mm

​Lifting height, down: 300mm

Pithead size: 2580*2040*600mm

​Motor power: 0.75kw

​Voltage: 220/380V

Service weight: 1150kg





Advantages:

  • ​​Easy to operate, just press the button, the regulator will automatically rise, release the button, the adjustment board lowering by the service weight.

  • Power control box external.

  • The hydraulic system adopts imported brand, excellent performance.

  • The unique design of the I-beam skeleton can support the average pressure, and reduce the torsion of the skeleton, more robust and durable.

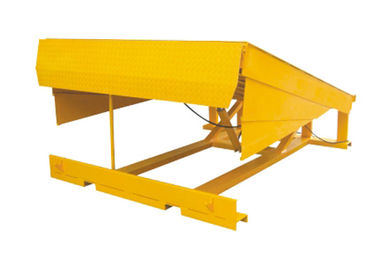

Automatical Hydraulic Scissor Dock Leveler With Electric Pump High Performance 0

SPECIFICATIONS OF DOCK LEVELER SCISSOR LIFT TABLE
Model   DL8000
Capacity kg 8000
Table size mm 2500*2000
Lip board size mm 2000*400
Lifting height, UP mm 400
Lifting height, DOWN mm 300
Exterior size(L*W*H) mm 2640*2040*600
Motor kw 0.75
Voltage V 220/380
Pithead size mm 2580*2040*600
Service weight kg 1150
