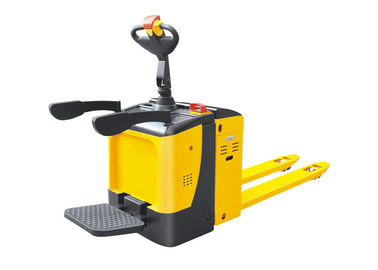

Super Light Steering Electric Pallet Truck PU Tyres With Vertical Driving Motor
  • name
  • name

Super Light Steering Electric Pallet Truck PU Tyres With Vertical Driving Motor

MOQ: 1 set
Price: Negotiable
Standard Packaging: 1set / pallet or 1set / wooden box
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 600 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE, TUV
Model Number
CBD25R
Capacity:
2500kg
Lowered Fork Height:
82mm
Max. Lifting Height:
202mm
Tyres:
PU
Tyres Size, Front:
250*70mm
Tyres Size, Rear:
82*126mm
Additional Wheels Size:
127*57mm
Travel Speed, Laden/unladen:
6.9/7km/h
Highlight:

motorized pallet jack

,

electric pump truck

Product Description





CBDR series electric pallet truck 2500kg with super light steering system





Quick details:



Model:​ Standing on type Electric pallet truck CBD25R​

Capacity: 2500kg

Lowered fork height: 82mm

Max. Lifting height: 202mm

Aisle width for pallets, 1000*1200 crossways: 1910/1960/2030mm

Aisle width for pallets, 800*1200 lengthways: 2010/2010/2030mm

Battery: 24V240AH

​Service weight: 750kg





Advantages:​

  • Germany FREI Tiller head.
  • ​Emergency stop and belly button.
  • BDI and hour meter.
  • ​Casters to balance stablity.
  • Industrial battery.
  • ​Brushless AC motor.
  • Vertical driving motor.
  • ​Sideway battery change.
  • Built-in charger.
  • Platform with speed sensor.

Option:​

  • Fork width and length (size).
  • Load backrest.
  • Built-in charger.
  • Customized battery compartment.
  • ​Entry and exist roller for empty pallets.
  • EPS.
  • ​Large compartment with battery capacity 400Ah, drive speed 10km/h.
  • ​Keypad Ignition switch.
  • Frei tiller head with one side lifting button.
  • ​Frei tiller head with two lifting button.



Super Light Steering Electric Pallet Truck PU Tyres With Vertical Driving Motor 0





SPECIFICATIONS OF 2.5T ELECTRIC PALLET TRUCK
Model   CBD25R
Load capacity kg 2500
Load center mm 600
Load distance mm 815/865/935
Fork height, lowered mm 82
Tyre size, front mm 250*70
Tyre size, rear mm 82*126(98)
Additional wheels (dimensions) mm 127*57
Max. lifting height mm 202
Height of tiller in drive position min./max. mm 1150/1430
Overall length mm 1710/1760/1830
Length to face of forks mm 610
Overall width mm 775
Fork dimensions mm 53/180/1100(1150/1220)
Width overall forks mm 520/550/650/685
Aisle width for pallets 1000*1200 crossways mm 1910/1960/2030
Aisle width for pallets 800*1200 lengthways mm 2010/2010/2030
Turning radius mm 1550/1600/1670
Travel speed, laden/unladen km/h 7/7.1
Battery V/Ah 24/240
Service weight kg 750





Super Light Steering Electric Pallet Truck PU Tyres With Vertical Driving Motor 1
