2000kg Capacity Motorised Pallet Truck Reliable Design With Electronic Scale
  • name

2000kg Capacity Motorised Pallet Truck Reliable Design With Electronic Scale

MOQ: 1 set
Price: Negotiable
Standard Packaging: 1set / pallet or 1set / wooden box
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 600 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE, TUV
Model Number
CBD20KC
Capacity:
2000kg
Front Wheels:
250*70mm
Rear Wheels:
82*126mm
Balance Wheels:
127*57mm
Max. Lifting Height:
202mm
Fork Dimensions:
54/186/1100(1150/1220)mm
Width Overall Forks:
556/656/691mm
Max. Deviation (rate):
±2‰
Highlight:

electric pump truck

,

electric walkie pallet jack

Product Description



2000kg capacity electric pallet truck with electronic scale





Quick details:



Model:​ Electric pallet truck with scale CBD20KC​

Capacity: 2000kg

Lowered fork height: 82mm

Max. Lifting height: 202mm

Fork dimensions: 54/186/1100(1150/1220)mm

Max. deviation (rate): ±2‰

Battery: 24V210AH

​Service weight: 720kg





Advantages:​

  • Compact, flexible, easy to operate, safe for operator.
  • Good passing performance, max. gradeability 8/20%.
  • Floating driving wheel, shock proof, stable.
  • The balance wheel is easy to disassemble and easy to maintain.
  • The driving motor is AC motor, no carbon brush, no maintenance, and greatly prolongs the service life.
  • Side way battery which is easy to change, make the electric pallet truck can do non-stop working.
  • The connecting rod is different from the traditional connecting rod type, it is never bent and has adjustable length.
  • Double guide wheel, convenient to go in and out the pallets.
  • The design of the cover is reasonable and reliable, and the disassembly is convenient, so that the maintenance of the electrical parts is very easy.
  • The integration of electrical equipment layout, neat lines, clear, easy maintenance, electrical system reliable, shockproof.
  • With the world famous brand weighing display instrument, the instrument has shockproof, waterproof function, with high reliability. The electric pallet truck is equipped with 8 weighing sensors, the performance is reliable, weighing accuracy is high.
  • Can choose printer as an option.

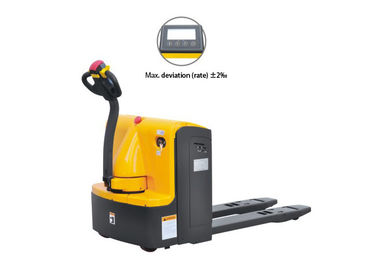

2T Electric pallet truck with scale





2000kg Capacity Motorised Pallet Truck Reliable Design With Electronic Scale 0



SPECIFICATIONS OF ELECTRIC PALLET TRUCK WITH SCALE
Model   CBD20KC
Battery type   1 set side way battery
Load capacity/rated load kg 2000
Load center distance mm 600
Load distance, centre of drive axle to fork mm 815/865/935
Tread mm 1229/1279/1349
Axle load, full capacity, front/rear kg 1240/1450
Axle load, unload, front/rear kg 540/150
Tyre size, front mm 250*70
Tyre size, rear mm 82*126
Additional wheels (dimensions) mm 127*57
Max. lifting height mm 202
Height of tiller in drive position min./max. mm 780/1230
Fork height, lowered mm 82
Overall length mm 1673/1723/1793
Length to face of forks mm 573
Overall width mm 775
Fork dimensions mm 54/186/1100(1150/1220)
Width overall forks mm 556/656/691
Aisle width for pallets 1000*1200 crossways mm 2033/2083/2153
Aisle width for pallets 800*1200 lengthways mm 2133/2133/2153
Turning radius mm 1400/1450/1520
Travel speed, laden/unladen km/h 5.5/5.6
Lift speed, laden/unladen m/s 0.04/0.05
Lower speed, laden/unladen m/s 0.06/0.05
Max. gradeability, laden/unladen % 8/20
Service brake   Electromagnetic brake
Max. deviation (rate)   ±2‰
Dive motor power kw 1.2
Lift motor power kw 1.2
Battery V/Ah 24/210
Service weight kg 720
