Full Sealed Battery Electric Pallet Truck Mini Type Anti - Vibration 1800kg Capacity

1 set
Full Sealed Battery Electric Pallet Truck Mini Type Anti - Vibration 1800kg Capacity
Features Gallery Product Description Request A Quote
Capacity: 1800kg
Max. Lifting Height: 190/180mm
Tyres: PU
Fork Dimensions: 53/160/1150(1220)mm
Width Overall Forks: 520/550/685mm
Turning Radius: 1347/1415mm
Travel Speed, Laden/unladen: 4.5/5km/h
Service Weight: 250kg
High Light:

motorized pallet jack


electric pump truck

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: CBD18W
Payment & Shipping Terms
Packaging Details: 1set / pallet or 1set / wooden box
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 600 sets per month
Product Description

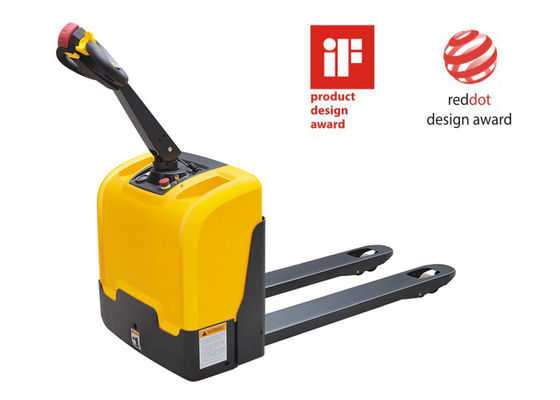

1800kg smallest turning radius electric pallet truck mini type with full sealed battery



Quick details:


Model:​ Mini electric pallet truck CBD18W​​

Capacity: 1800kg

Fork height, lowered: 85/75mm

Max. lifting height: 190/180mm

Fork dimensions: 53/160/1150(1220)mm

Turning radius: 1347/1415mm

Travel speed, laden/unladen: 4.5/5km/h

Service weight: 250kg




  • This electric pallet truck has the smallest turning radius with the same size as hand pallet truck, which widely used in narrow aisle warehouse, supermarket and containers.
  • ​Horizontal drive wheel provides convenient replacement. Adopting floating balance wheel can prevent the side swing of the truck when travelling.
  • ​Travel smoothly and no swing.
  • Great anti-vibration.
  • ​Full sealed battery, free to maintain.
  • ​All operations are done by various buttons on the handle.
  • ​Different capacity can be chosen: 1500kg/1800kg/2000kg



Model   CBD18W
Load capacity kg 1800
Fork height, lowered mm 85/75
Tyre size, front mm 195*70
Tyre size, rear (single) mm 80*93/74*93
Tyre size, rear (double) mm 80*70/74*70
Max. lifting height mm 190/180
Height of tiller in drive position min./max. mm 950/1310
Overall length mm 1525/1595
Length to face of forks mm 375
Overall width mm 685
Fork dimensions mm 53/160/1150(1220)
Width overall forks mm 520/550/685
Aisle width for pallets 1000*1200 crossways mm 1725/1795
Aisle width for pallets 800*1200 lengthways mm 1775/1795
Turning radius mm 1347/1415
Travel speed, laden/unladen km/h 4/4.5
Battery V/Ah 24/80
Service weight kg 250



This is a mini electric pallet truck suitable for using in small spaces.




Full Sealed Battery Electric Pallet Truck Mini Type Anti - Vibration 1800kg Capacity 0


standard handle          option: new design handle          option: Frei handle
