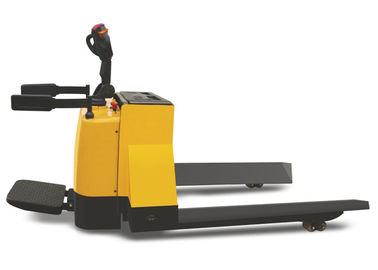

AC Drive Electric Reel Pallet Truck 2000kg With Steering System Low Noise

1 set
AC Drive Electric Reel Pallet Truck 2000kg With Steering System Low Noise
Features Gallery Product Description Request A Quote
Capacity: 2000kg
Max. Lifting Height: 155mm
Tyres: PU
Fork Length: 1150mm
Width Overall Forks: 550/685mm
Fork Dimensions: 55/185/1150mm
Travel Speed, Laden/unladen: 6km/h
Service Weight: 700kg
High Light:

motorized pallet jack


electric walkie pallet jack

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: QBA20Z
Payment & Shipping Terms
Packaging Details: 1set / pallet or 1set / wooden box
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 600 sets per month
Product Description


AC 2000kg reel electric pallet truck with electric steering system



Quick details:


Model:​ electric reel pallet truck QBA20Z​​

Capacity: 2000kg

Fork height, lowered: 35mm

Max. lifting height: 155mm

Fork dimensions: 55/185/1150mm

Turning radius: 1720mm

Travel speed, laden/unladen: 6km/h

Service weight: 700kg




  • AC drive system gives precise control, longer battery life.
  • Aluminum cover, good heat dissipation for longer service life.
  • The latest AC controller, reliable quality, excellent performance, with regenerative braking.
  • Top-class hydraulic, low noise, low vibration, good sealing to ensure smooth and reliable decline.
  • Precision electronic limit switches.
  • Electric pallet truck circuit lines in nylon casing, wiring clean and corrosio,oil &abrasion resistant.
  • Advanced Robot welding ensure high strength, good finish, no bubble in the welding.
  • AC drive motor, no carbon brushes, reducing maintenance costs. Vertical drive motor make the inspection and repair more convenient, which performance much better than the transverse motor.
  • The design of integrated micro-switches, easy for replacement .
  • Cover easy to open, convenient to add distilled water or electrolyte of the battery.
  • Controller self-diagnosis system makes troubleshoothing easier.
  • Emergency reverse switch.
  • Emergency power-off disconnect.
  • Foldable pedal, skid-proof, shock absorption, reducing the operator's fatigue.



Unique fork design specifically for handling reel goods, which can effectively prevent the cargo from rolling.

​Easy to use, save time and effort, is the ideal tool for moving heavy equipment.


AC Drive Electric Reel Pallet Truck 2000kg With Steering System Low Noise 0


Model   QBA20Z
Drive type   electric
Operate type   standing
Load capacity kg 2000
Load center distance mm 600
Load distance, centre of drive axle to fork mm 800
Axle loading, laden front/rear kg 1640/1080
Axle loading, unladen front/rear kg 160/560
Tyres   Polyurethane
Tyre size, front mm 250*70
Tyre size, rear mm 80*80
Additional wheels (dimensions) mm 114*50
Max. lifting height mm 155
Fork height lowered mm 35
Overall length mm 1890
Overall width mm 780
Fork dimensions mm 55/185/1150
Width overall forks mm 550/685
Ground clearance, center of wheelbase mm 30
Aisle width for pallets 1000*1200 crossways mm 2135/2185/2255
Aisle width for pallets 800*1200 lengthways mm 1700/1750/1820
Turning radius mm 1720
Travel speed, laden/unladen km/h 6
Lift speed, laden/unladen m/s 0.06
Lower speed, laden/unladen m/s 0.05
Max. gradeability, laden/unladen % 8/10
Service brake   Electromagnetic brake
Drive motor rating kw 1.5
Lift motor rating kw 2.0
Service weight kg 700


AC Drive Electric Reel Pallet Truck 2000kg With Steering System Low Noise 1
