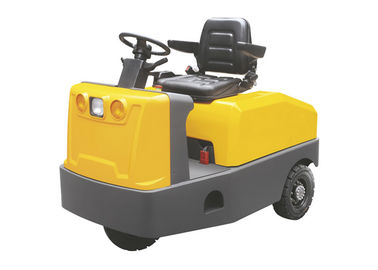

Full AC System Electric Tow Tractor 2 Ton High Range Steering Design
  • name
  • name
  • name
  • name
  • name

Full AC System Electric Tow Tractor 2 Ton High Range Steering Design

MOQ: 1 set
Price: USD 4670 per set
Standard Packaging: Nude
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 500 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE, TUV
Model Number
QDD20E
Rated Traction Weight (60 Minutes Rated):
2000kg
Overall Length:
1720mm
Overall Width:
968mm
Turning Radius:
1500mm
Travel Speed, Laden/unladen:
7/10km/h
Max. Gradeability (laden/unladen):
7/12%
Battery:
36V200AH
Traction Bolt:
Traction Bolt
Highlight:

electric platform truck

,

industrial tow tractors

Product Description



Full AC system electric tow tractor capacity 2000kg light to steering and easy to maintain







Advantages:

  • New advanced car outline, completely opened cover, distinguished and beautiful.

  • Full AC electric system has brake-releasing function, more easy and comfortable to operate; Maintenance-free motor completely solves the problem of DC motor carbon brush.

  • New large-screen display instrument provides all kinds of information more clearly and directly for the operator.

  • New opened high-range steering design, light to steering and easy to maintain.

  • The parking brake adopts electromagnetic brake. It locks the truck automatically after parking, which avoids the sliding danger of the truck caused by forgetting to use the hand brake.​





SPECIFICATIONS
Model   QDD20E (AC)
Drive type   battery
Load capacity kg 2000
Drawbar center height mm 280/350
Axle loading, front kg 300
Axle loading, rear kg 440
Tyre size, front solid rubber 15*4½-8
Tyre size, rear solid rubber 15*4½-8
Rear hanging distance mm 295
Seat height mm 910
Overall length mm 1720
Overall width mm 968
Overall height mm 1270
Min. ground height mm 90
Min. turning radius mm 1500
Travel speed, laden/unladen km/h 7/10
Max. gradeability, laden/unladen   7/12
Battery V/Ah 36/200
Traction bolt   Traction bolt
Service weight kg 740








Full AC System Electric Tow Tractor 2 Ton High Range Steering Design 0





Full AC System Electric Tow Tractor 2 Ton High Range Steering Design 1          Full AC System Electric Tow Tractor 2 Ton High Range Steering Design 2

   Adjustable steering column with electric              Large capacity batteries located in the

   F/R lever                                                              lowest part of frame, offers low centre

                                                                                of gravity.








Full AC System Electric Tow Tractor 2 Ton High Range Steering Design 3







Full AC System Electric Tow Tractor 2 Ton High Range Steering Design 4



Full AC System Electric Tow Tractor 2 Ton High Range Steering Design 5

  • ​Cargo loading platform are available in different size as customer special requirements.
