Counterbalanced Narrow Aisle Truck Capacity 1000kg Small Turning Radius
  • name
  • name
  • name

Counterbalanced Narrow Aisle Truck Capacity 1000kg Small Turning Radius

MOQ: 1 set
Price: Negotiable
Standard Packaging: Nude
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 100 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE, TUV
Model Number
CPD10A
Capacity:
1000kg
Max. Lifting Height:
3000mm
Height, Mast Lowered:
2155mm
Height, Mast Extended:
3565mm
Free Lift:
1600mm
Turning Radius:
1200mm
Travel Speed, Laden/unladen:
5.8/6km/h
Lift Speed, Laden/unladen:
0.11/0.15m/s
Highlight:

narrow aisle forklift truck

,

narrow aisle straddle truck

Product Description



Small turning radius counterbalanced narrow aisle forklift truck capacity 1000kg easy and smart to operate



Quick Details:

Product name: Narrow aisle forklift truck CPD10A

Capacity: 1000lg

Lifting height: 3000mm

Free lift: 1600mm

Aisle width for pallets 1000*1200 crossways: 2700mm

Aisle width for pallets 800*1200 lengthways: 2810mm

Turning radius: 1200mm

Battery: 24V360AH





Advantages:

  • ​​​Advanced AC control system with MOSFET delivers smooth driving speed control for precise.

  • Small turning radius, easy and smart to operate.

  • Lean-on compartment reducing operator's fatigue.

  • With regenerative braking system for driving and electronic braking system for parking.

  • Low Battery Protection setting prolongs service life.

  • With deadman switch on floor to cut off the power when operator leave the foot from cab.

  • Lifting cylinders on the both of mast provides best visibility.

  • The optional of Full Hydraulic Steering System and

EPS offers follow advantages:

- Steering wheel automatic reset.

- Traveling speed automatically slow down when steering.

- Show the turning angles on the display.

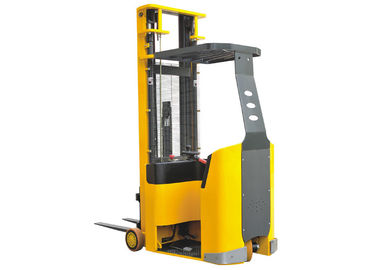

Counterbalanced Narrow Aisle Truck Capacity 1000kg Small Turning Radius 0







Counterbalanced Narrow Aisle Truck Capacity 1000kg Small Turning Radius 1



Counterbalanced Narrow Aisle Truck Capacity 1000kg Small Turning Radius 2



Counterbalanced Narrow Aisle Truck Capacity 1000kg Small Turning Radius 3





SPECIFICATIONS
Model   CPD10A
Power   battery
Load capacity kg 1000
Load center distance mm 600
Load distance, centre of drive axle to fork mm 140
Tyre size, front mm 250*80
Tyre size, rear mm 280*100
Height, mast lowered mm 2155
Free lift mm 1600
Max. lifting height mm 3000
Height, mast extended mm 3565
Height of overhead guard(cabin) mm 2090
Height of tiller in drive position min./max. mm 1000
Overall length mm 2210
Overall width mm 890
Fork dimensions mm 35/100/950
Fork carriage width mm 560
Ground clearance, centre of wheelbase mm 50
Aisle width for pallets 1000*1200 crossways mm 2700
Aisle width for pallets 800*1200 lengthways mm 2810
Turning radius mm 1200
Travel speed, laden/unladen km/h 5.8/6
Lift speed, laden/unladen m/s 0.11/0.15
Lowering speed, laden/unladen m/s 0.15/0.11
Battery V/Ah 24/360
Service weight kg 2120









    AC        EPS
