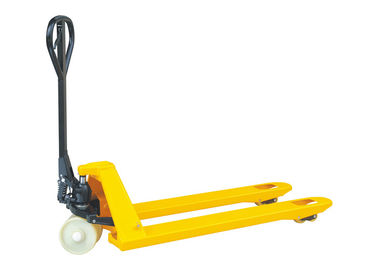

High Loading Hand Pallet Jack , Single Speed Pump Manual Pallet Truck
  • name

High Loading Hand Pallet Jack , Single Speed Pump Manual Pallet Truck

MOQ: 6 sets
Price: Negotiable
Standard Packaging: 6sets/pallet, 144 / 180sets for a 20ft container
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 40000 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE, TUV
Model Number
WA
Capacity:
3000kg
Lowered Fork Height:
85/75mm
Steering Wheel:
200/180mm
Fork Wheel:
80*93/74*93mm
Max. Lifting Height:
200/190mm
Fork Length:
1150/1220mm
Width Overall Forks:
520/550/685mm
Service Weight:
60-70kg
Highlight:

manual pallet jack

,

low profile pallet jack

Product Description



High load-carrying capacity hand pallet truck with standard single speed pump



Quick Details



Model: Hand pallet truck WA

​​​Capacity: 3000kg

Lowered fork height: 85/75mm

Total lift height: 200/190mm

Fork dimension: 520/550/685*1150/1220mm

Turning radius: 1265/1335mm





Advantages:

  • Standard single speed pump and light service weight, but big load capacity 3000kg.

  • ​Design on the base of 3 years service time, which can be extended up to 5 years.

  • ​Compact appearance, complete rocker arms, ensure the whole truck averaged pressed.

  • Full sealed pump, easy to maintain.

  • ​Simplified spare parts, higher performance with low repair cost.

  • Option: 1. Double speed pump.

​​                      2. Nylon, PU, rubber wheels, single fork roller or tandem fork rollers.

​                      3. Fork length.



SPECIFICATIONS
Model   WA
Load capacity kg 3000
Lowered fork height mm 85/75
Steering wheel mm 200/180
Fork wheel single mm 80*93/74*93
Fork wheel double mm 80*70/74*70
Max. lifting height mm 200/190
Total height mm 1232/1222
Overall length mm 1533/1603
Fork length mm 1150/1220
Width overall forks mm 550/685
Ground clearance, centre of wheelbase mm 32
Aisle width for pallets 1000*1200 crossways mm 1733/1803
Aisle width for pallets 800*1200 lengthways mm 1783/1803
Turning radius mm 1265/1335
Service weight kg 70

​
