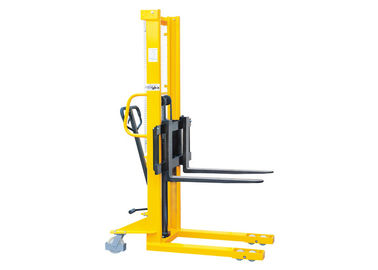

2500mm Lifting Height Manual Pallet Stacker With Forged Adjustable Forks

1 set
MOQ
Negotiable
Price
2500mm Lifting Height Manual Pallet Stacker With Forged Adjustable Forks
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 1000kg
Max. Lifting Height: 2500mm
Height, Mast Lowered: 1840mm
Height, Mast Extended: 2925mm
Width Overall Forks: 200-950/700mm
Aisle Width For Pallets 1000*1200 Crossways: 1915mm
Aisle Width For Pallets 800*1200 Lengthways: 1915mm
Turning Radius: 1235mm
Service Weight: 316kg
High Light:

manual hydraulic stacker

,

manual forklift stacker

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: SDJA1000
Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets per month
Product Description

1000kg 2500mm manual pallet stacker with forged adjustable forks​



Quick Details:

Capacity: 1000kg

Height, mast lowered: 1840mm

Max. lift height: 2500mm

Height, mast extended: 2925mm

​Fork dimensions: 30/100/800(1060)mm

Width overall forks: 200-950/700mm

Aisle width for pallets:1915mm​

​Turning radius: 1235mm

​Lift speed, laden/unladen: 25mm/time





Advantages:

  • ​​With adjustable forks between 200-950mm.

  • ​Lifting height from 1600 to 2500mm

  • ​High quality strong steel mast ensures rigidity and durability.

  • ​Adjustable forged forks.

  • ​High efficient pumps makes the control easier to operate.

  • Overload protection

2500mm Lifting Height Manual Pallet Stacker With Forged Adjustable Forks 0

Nylon wheels, characteristics of low rotating                              High strength reinforced double chain

power, light driving, stable chemical property and so on.           transmission,​ tight junction combination,

It is suitable for more use places.                                               stable structure, reliable, low noise, high

                                                                                                    efficiency, strong.





SPECIFICATIONS
Model   SDJA
Load capacity kg 1000
Load center distance mm 500
Fork lowered height mm 90
Height, mast lowered mm 2085/1840
Max. lifting height mm 1600/2500
Height, mast extended mm 2165/2925
Overall length mm 1380/1640
Overall width mm 1000/750
Fork dimensions mm 30/100/800(1060)
Width overall forks mm 200-950/700
Ground clearance, centre of wheelbase mm 25
Aisle width for pallets 1000*1200 crossways mm 1915
Aisle width for pallets 800*1200 lengthways mm 1910
Turning radius mm 1235
Lift speed, laden/unladen mm/stroke 25
Lowering speed, laden/unladen m/s Manual control
Service weight kg 250/320

2500mm Lifting Height Manual Pallet Stacker With Forged Adjustable Forks 1
