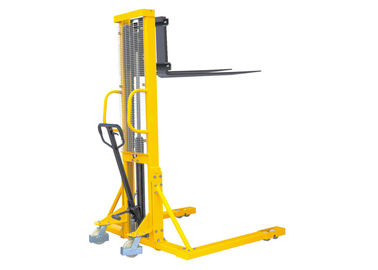

Adjustablemanual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency
1 set
MOQ
Negotiable
Price
Adjustablemanual Hydraulic Pallet Stacker , Straddle Stacker Forklift High Efficiency
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: SDJAS1000
High Light:

manual hydraulic stacker

,

manual forklift stacker

Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets per month
Specifications
Capacity: 1000kg
Max. Lifting Height: 1600mm
Height, Mast Lowered: 2050mm
Height, Mast Extended: 2155mm
Width Overall Forks: 950mm
Aisle Width For Pallets 1000*1200 Crossways: 1975mm
Aisle Width For Pallets 800*1200 Lengthways: 1915mm
Turning Radius: 1200mm
Service Weight: 294kg
Product Description

Adjustable forks 1000kg manual pallet stacker with straddle legs



Quick Details:

Capacity: 1000kg

Height, mast lowered: 2050mm

Max. lift height: 1600mm

Height, mast extended: 2155mm

​Fork dimensions: 30/100/800(1060)mm

Width overall forks: 950mm

​Aisle width for pallets 1000*1200 crossways: 1975mm

Aisle width for pallets 800*1200 lengthways:1915mm​

​Turning radius: 1200mm

​Lift speed, laden/unladen: 25mm/time





Advantages:

  • ​​With straddle legs, inner width between two legs is 1250mm.

  • Forged adjustable forks.

  • Max. lifting height 1.6 meter.

  • Strong C steel mast makes the manual pallet stacker rigidity and durability.

  • Two way for lifting, by handle or foot.

  • With the guard of wheels, operator will be very safe during work.

  • High efficiency pump with imported sealing ring, dustproof ring.

  • ​Suitable for long pallets or goods, and closed pallets.
SPECIFICATIONS
Model   SDJAS1000
Load capacity/rated load kg 1000
Load center distance mm 500
Fork height, lowered mm 70
Height, mast lowered mm 2050
Max. lifting height mm 1600
Height, mast extended mm 2155
Overall length mm 1300/1560
Overall width mm 1450
Fork dimensions mm 30/100/800(1060)
Width overall forks mm 950
Ground clearance, centre of wheelbase mm 25
Aisle width for pallets 1000*1200 crossways mm 1975
Aisle width for pallets 800*1200 lengthways mm 1915
Turning radius mm 1200
Lift speed, laden/unladen mm/time 25
Lowering speed, laden/unladen mm/s Manual control
Service weight kg 336
