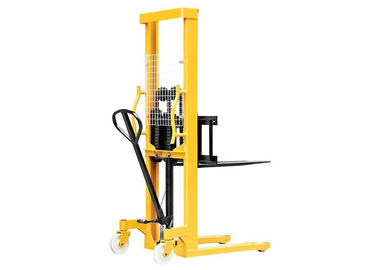

2 Ton Manual Forklift Stacker , Heavy Column Steel Hand Pallet Stacker
  • name
  • name
  • name

2 Ton Manual Forklift Stacker , Heavy Column Steel Hand Pallet Stacker

MOQ: 1 set
Price: Negotiable
Standard Packaging: 1set / pallet
Delivery Period: 25 - 30 days
Payment Method: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity: 500 sets per month
Detail Information
Product Description
Detail Information
Place of Origin
Zhejiang, China
Brand Name
REACH
Certification
CE, TUV
Model Number
SJJA20E
Capacity:
2000kg
Max. Lifting Height:
1500mm
Height, Mast Lowered:
2085mm
Height, Mast Extended:
2085mm
Width Overall Forks:
250-950mm
Aisle Width For Pallets 1000*1200 Crossways:
2050mm
Aisle Width For Pallets 800*1200 Lengthways:
2040mm
Turning Radius:
1250mm
Service Weight:
265kg
Highlight:

manual forklift stacker

,

hand pallet stacker

Product Description

2000kg manual pallet stacker adopt heavy "C" steel column steel



Quick Details:

Capacity: 2000kg

Height, mast lowered: 2085mm

Max. lift height: 1500mm

Height, mast extended: 2085mm

​Fork dimensions: 61/170/1100(1150)mm

Width overall forks: 250-950mm

Aisle width for pallets 1000*1200 crossways:2050mm

​Aisle width for pallets 800*1200 lengthways: 2040mm

​Turning radius: 1250mm

​Lift speed, laden/unladen: 18/20mm/time





Advantages:

  • ​​​2000kg manual pallet truck with 1.5 meter lifting height.

  • Diversified operation, easy to feel high efficiency.

  • Sturdy mast.

  • Robot welding.

  • Adjustable forged forks.

  • Nylon wheels.

  • Can operate by handle or by foot pedal.

  • Small turning radius 1250mm.

  • The imported sealing elements were introduced to guarantee high sealing performance of hydraulic system.



SPECIFICATIONS
Model   SJJA20E
Load capacity/rated load kg 2000
Load center distance mm 400
Fork height, lowered mm 90
Height, mast lowered mm 2085
Max. lifting height mm 1500
Height, mast extended mm 2085
Overall length mm 1386
Overall width mm 1000
Fork dimensions mm 32/120/900
Width overall forks mm 250~950
Ground clearance, centre of wheelbase mm 25
Aisle width for pallets 1000*1200 crossways mm 2050
Aisle width for pallets 800*1200 lengthways mm 2040
Turning radius mm 1250
Lift speed, laden/unladen mm/time 18/20
Lowering speed, laden/unladen mm/s Manual control
Service weight kg 265

2 Ton Manual Forklift Stacker , Heavy Column Steel Hand Pallet Stacker 0​
