1500kg Capacity Manual Pallet Stacker For Short Distance Transportation
1 set
MOQ
Negotiable
Price
1500kg Capacity Manual Pallet Stacker For Short Distance Transportation
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: SDJ1500
High Light:

manual hydraulic stacker

,

manual forklift stacker

Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets per month
Specifications
Capacity: 1500kg
Max. Lifting Height: 1600mm
Height, Mast Lowered: 2080mm
Height, Mast Extended: 2080mm
Overall Width: 755mm
Turning Radius: 1380mm
Lift Speed, Laden/unladen: 21mm/time
Lowering Speed, Laden/unladen: Control By Hand
Service Weight: 239kg
Product Description



Fixed forks 1500kg capacity manual pallet stacker for short distance transportation



Quick Details:

Capacity: 1500kg

Height, mast lowered: 2080mm

Max. lift height: 1600mm

Height, mast extended: 2080mm

​Fork dimensions: 61/170/1100(1150)mm

Width overall forks: 550mm

Aisle width for pallets 1000*1200 crossways:2112mm

​Aisle width for pallets 800*1200 lengthways: 1945mm

​Turning radius: 1380mm

​Lift speed, laden/unladen: 21mm / time

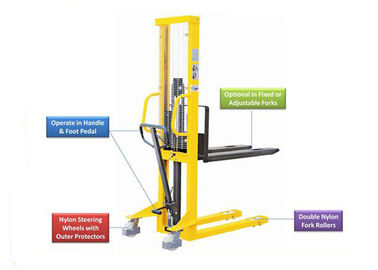

Advantages:

  • ​​1500kg manual pallet truck with 1.6 meter lifting height.

  • Strong C steel mast.

  • Lifting by moving the handle up and down (or tread the foot pedal), falling is by pinching the black knob.

  • The reasonable structure design makes the transportation work becomes very easy.

  • The manual pallet stacker is suitable for mould processing industry, logistics industry and warehouse, wharf, supermarket and other places.

  • The standard mast and the width of the forks are suitable for all kinds of pallets in the world.



SPECIFICATIONS
Model   SDJ1500
Load capacity/rated load kg 1500
Load center distance mm 400
Fork height, lowered mm 90
Height, mast lowered mm 2080
Max. lifting height mm 1600
Height, mast extended mm 2080
Overall length mm 1655/1705
Overall width mm 755
Fork dimensions mm 61/170/1100(1150)
Width overall forks mm 550
Ground clearance, centre of wheelbase mm 25
Aisle width for pallets 1000*1200 crossways mm 2112
Aisle width for pallets 800*1200 lengthways mm 1945
Turning radius mm 1380
Lift speed, laden/unladen mm/time 21
Lowering speed, laden/unladen mm/s Manual control
Service weight kg 236



1500kg Capacity Manual Pallet Stacker For Short Distance Transportation 0
