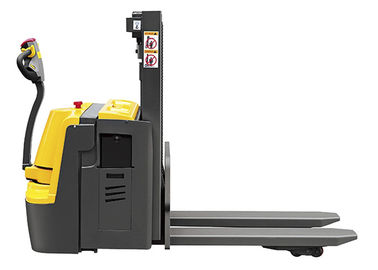

Detachable Double Pallet Truck , Low Shelves Warehouse Pallet Jack Truck

Products

Detachable Double Pallet Truck , Low Shelves Warehouse Pallet Jack Truck

MOQ:	1 set
Price:	Negotiable
Standard Packaging:	1set / pallet or 1set / wooden box
Delivery Period:	25 - 30 days
Payment Method:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity:	600 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

Zhejiang, China

Brand Name

REACH

Certification

CE, TUV

Model Number

CBD20S

Capacity:

2000kg

Lowered Fork Height:

Max. Lifting Height:

1600/2000/2500mm

Tyre Size, Front:

250*70mm

Tyre Size, Rear:

80*70mm

Fork Dimensions:

60/180/1100mm

Initial Lift:

120mm

Battery:

24V210AH

Highlight:

motorized pallet jack

electric walkie pallet jack

Product Description

Double pallet 2000kg electric pallet truck widely used in low shelves warehouse

Quick details:

Model: Double Pallet Electric Pallet Truck CBD20S

Capacity: 2000kg

Lowered fork height: 90mm

Max. Lifting height: 1600/2000/2500mm

Initial lift: 120mm

Aisle width for pallets, 1000*1200 crossways: 2238mm

Aisle width for pallets, 800*1200 lengthways: 2288mm

Battery: 24V210AH

Service weight: 950kg

Advantages:

Carry two pallets at one single time.
The tiller head is equipped with an emergency reverse direction switch, which provides safer operation.
Built-in pressure relief valve protects the truck from overload, and increase the electric pallet truck's safety.
Stepless speed control and turtle speed switch.
Vertical driving wheel offers small turning radius.
Dividable and exchangeable mast.
Adjustable floating balance wheel is resistant to wear and stable.
Sliding rail connects the moving part of the front and rear, makes lifting and lowering stable.
CANbus technology reduces wiring complexity.
Hall-effect throttle control eliminates ware components and prolongs its use time.
The balance wheel is detachable,convenient to maintain.
Integral and modularized electrical system makes the maintenance of the electrical parts convenient.

2000kg capacity Double pallets electric pallet truck

Detachable Double Pallet Truck , Low Shelves Warehouse Pallet Jack Truck 0

SPECIFICATIONS OF DOUBLE PALLETS ELECTRIC PALLET TRUCK
Model		CBD20S
Load capacity/rated load	kg	2000
Load capacity/rated load with mast lift	kg	1000
Load capacity/rated load with wheel arm lift	kg	2000
Load center distance	mm	600
Load distance, centre of drive axle to fork	mm	831
Fork height, lowered	mm	90
Tyre size, front	mm	250*70
Tyre size, rear	mm	80*70
Additional wheels (dimensions)	mm	127*57
Height, mast lowered	mm	1082/1212/1382
Max. lifting height	mm	1600/2000/2500
Initial lift	mm	120
Height of tiller in drive position min./max.	mm	780/1230
Overall length	mm	1962
Length to face of forks	mm	862
Overall width	mm	775
Fork dimensions	mm	60/180/1100
Width overall forks	mm	570/650
Aisle width for pallets 1000*1200 crossways	mm	2238
Aisle width for pallets 800*1200 lengthways	mm	2288
Turning radius	mm	1705
Travel speed, laden/unladen	km/h	4.5/5.2
Lift speed, laden/unladen	m/s	0.03/0.04
Lowering speed, laden/unladen	m/s	0.05/0.045
Battery	V/Ah	24/210
Service weight	kg	950

Detachable Double Pallet Truck , Low Shelves Warehouse Pallet Jack Truck 1
