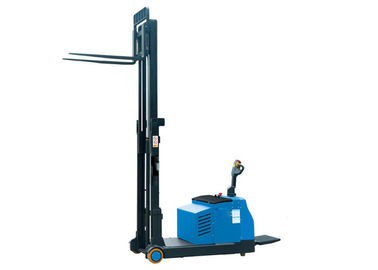

1000kg Max Capacity Electric Pallet Stacker With High Storage Battery
1
MOQ
USD 4000~5000/unit
Price
1000kg  Max Capacity Electric Pallet Stacker With  High Storage Battery
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Ningbo, China
Brand Name: REACH
Certification: CE,TV
Model Number: KLA10-16
High Light:

hydraulic pallet stacker

,

straddle pallet stacker

Payment & Shipping Terms
Packaging Details: pallet
Delivery Time: 25 working days
Payment Terms: T/T, L/C, D/P, D/A, Western Union, MoneyGram,
Supply Ability: 600 units per month
Specifications
Max Capacity: 1000kg
Max Lift Height: 1600mm
Overall Length Of Frame: 2830mm
Overall Width Of Frame: 940mm
Drive Wheel: 230x75mm
Voltage And Capacity: 24v/210Ah
Product Description

Reach electric stacker with 1 ton capacity 1.6m lifting height​





Advantage



With EPS, could help easy turning,and comfertable;
AC frequency conversion traction motor:compact;
Tilting system forkks easy for loading and stacking;
High storage battery ensures trong and long-lasting power;
Meter with BDI,prolonging the battery's using time





1000kg  Max Capacity Electric Pallet Stacker With  High Storage Battery 0



Specification



Model   KLA10-16
Max load capacity Kg 1000
Load center mm 500
Travel speed(load/unload) Km/h 4 / 5
Lifting speed(load/unload) mm/s 100 / 180
Overall length of frame mm 2830
Overall width of frame mm 940
wheel base mm 1430
Mast lowered height mm 2190
Fork demision mm 100/40/1070
Turning radius mm 2130
Front wheel mm 210x85
Drive wheel mm 230x75
Voltage and capacity V/Ah 24/210
