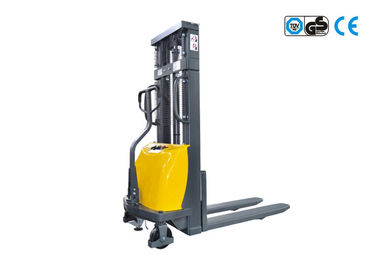

Easy Operating Super Light 1000kg Semi - Electric Stacker , Standard Fixed Forks

1 set
MOQ
Negotiable
Price
Easy Operating Super Light 1000kg Semi - Electric Stacker , Standard Fixed Forks
Features Gallery Product Description Request A Quote
Features
Specifications
Load Capacity:: 1000kg
Load Center:: 500mm
Lifting Height:: 1600mm / 2500mm / 3000mm
Service Weight:: 355kg - 445kg
High Light:

straddle pallet stacker

,

walk behind pallet stacker

Basic Infomation
Place of Origin: Zhejiang , China
Brand Name: REACH
Certification: CE , TUV
Model Number: CDD10B-III
Payment & Shipping Terms
Packaging Details: Nude packing
Delivery Time: 15 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets per month
Product Description



Easy operating super light 1000kg semi - electric stacker , standard fixed forks



Quick details:




> Load capacity: 1000kg (1500kg is available)



> Max. lifting height: 1600mm / 2500mm / 3000mm



> Fork dimensions: 60×170×1070mm



> Lift speed, laden/ unladen: 0.07/0.09 m/s



> Turning radius: 1425mm









Product specification:




SPECIFICATIONS

Model



Fixed type forks
CDD10B-III

Load capacity

kg

1000

Load center distance

mm

500

Load distance, centre of drive axle to fork

mm

802

Tyre size, front

mm

180*50

Tyre size, rear

mm

80*70

Height, mast lowered

mm

2090/1840/2090

Max. lifting height

mm

1600/2500/3000

Extended mast height

mm

2090/3060/3560

Overall length

mm

1678

Length to face of forks

mm

608

Overall width

mm

800

Fork dimensions

mm

60/170/1070

Width overall forks

mm

580/695

Aisle width for pallets 800*1200 lengthways

mm

2267

Turning radius

mm

1425

Lift speed, laden/unladen

m/s

0.08/0.1

Lowering speed, laden/unladen

m/s

0.15/0.12

Service brake



mechanical

Battery

V/Ah

12/120

Service weight

kg

400/460/480







Easy Operating Super Light 1000kg Semi - Electric Stacker , Standard Fixed Forks 0


Advantages:




> Handle-castor chain assist steering system, which greatly reduces the labor intensity.

> CDD10B-III is equipped with explosion-proof valve, against of sudden drop of forks and prevent operator from harm.

> The over-discharge protection device greatly prolongs the battery life time.

> Standard with overall type adjustable forks, which can be lowered to the same level of the legs.

> Chain connect side wheels and handle, easy for steering.

> Easy operating foot brake.

...





Easy Operating Super Light 1000kg Semi - Electric Stacker , Standard Fixed Forks 1





Easy Operating Super Light 1000kg Semi - Electric Stacker , Standard Fixed Forks 2



Easy Operating Super Light 1000kg Semi - Electric Stacker , Standard Fixed Forks 3
