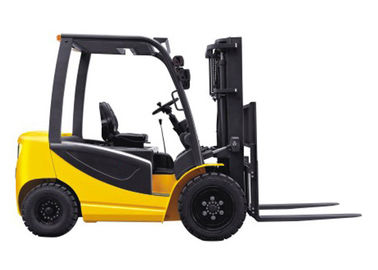

Large Battery Forklift Truck 3000kg , Double Controller Fork Lift Trucks
1 set
MOQ
Negotiable
Price
Large Battery Forklift Truck 3000kg , Double Controller Fork Lift Trucks
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: FB30
High Light:

electric powered forklift

,

battery powered forklift

Payment & Shipping Terms
Packaging Details: Nude
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 200 sets per month
Specifications
Power: Electric
Operation Type: Seat
Capacity: 3000kg
Lift Height: 3000-6000mm
Fork Dimensions: 40*130*1070mm
Turning Radius: 2350mm
Battery: 80V450AH
Service Weight: 4350kg
Product Description

6000mm Large battery 3ton electric forklift truck with double controller


Quick Details:


Model: electric forklift truck FB30

​​​Capacity: 3000kg

Lift height: 3000-6000mm

Aisle width for pallets 1000*1200 crossways: 3950mm

Aisle width for pallets 800*1200 lengthways: 3750mm

Turning radius: 2350mm

Travel speed, laden/unladen: 13km/h

Battery: 80V450AH



Advantages:






  • ​​Electric forklift truck 3ton, lifting height from 3 meters to 6 meters.

  • Ergonomics

  • Wide view mast, clear visibility.

  • Low height access step with wide steel non slip plate for easy entry and exit.

  • ​Easy maintenance

  • Floor board are easily removed for quick service assess.

  • Insulated battery cover gas-filled cylinders and easy to maintain.

  • The lifting motor under the floorboard for easy maintenance.

  • Cowl-mounted hydraulic levers design offers big operation space.

  • Adjustable tilt steering column offers the most comfortable operator position.

  • Seat with safety belt and arm rest (The optional of Grammar or suspension type).

  • High-friction brake shoes are free of asbestos.

  • With reverse mirror, front work light and back work light group.





SPECIFICATIONS
Model FB30
Power electric
Operation type seat
Load capacitykg3000
Load center distancemm500
Lift heightmm3000-7000
Load distance, centre of drive axle to forkmm498
Wheelbasemm1700
Axle loading, laden front/rearkg6468/882
Axle loading, unladen front/rearkg1740/2610
Tyres type pneumatic/solid
Tyre size, frontmm710*220/695*218
Tyre size, rearmm590*175/577*162
Tread, frontmm1000
Tread, rearmm970
Tilt of mast/fork carriage forward/backwardGrad6°-12°
Height, mast loweredmm2060-3139
Free liftmm0
Height, mast extendedmm4250-8250
Height of overhead guard(cabin)mm2095
Seat height/stand heightmm1035
Overall lengthmm3655
Length to face of forksmm2585
Overall widthmm1205
Fork dimensionsmm45/130/1070
Fork carriage widthmm1200
Ground clearance, laden, below mastmm135
Ground clearance, centre of wheelbasemm150
Aisle width for pallets 1000*1200 crosswaysmm3950
Aisle width for pallets 800*1200 lengthwaysmm3750
Turning radiusmm2350
Internal turning radiusmm575
Travel speed, laden/unladenkm/h0-13
Lift speed, laden/unladenmm/s220
Lowering speed, laden/unladenmm/s<600
Max. drawbar pull, laden/unladenN15650
Max. gradeability, laden/unladen%12/15
Acceleration time, laden/unladens0-3
BatteryV/Ah80/450
Type of drive control DC/AC
Operating pressure for attachmentsMpa16.5
Sound level at the driver's ear acc. to DIN 12053dB(A)<65.2
Service weightkg4350
