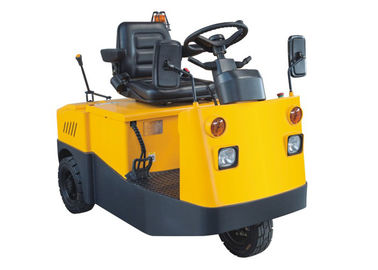

Stepless Speed Control Electric Tow Tractor With Adjustable Seat Chair

China Stepless Speed Control Electric Tow Tractor With Adjustable Seat Chair supplier
Stepless Speed Control Electric Tow Tractor With Adjustable Seat Chair supplier Stepless Speed Control Electric Tow Tractor With Adjustable Seat Chair supplier

Large Image :  Stepless Speed Control Electric Tow Tractor With Adjustable Seat Chair

Product Details:

Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: QDD60

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD 4670 per set
Packaging Details: Nude
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 500 sets per month
Contact Now
Detailed Product Description
Rated Traction Weight (60 Minutes Rated): 6000kg Drive Type: Battery
Weight: 1360kg Axle Loading, Front: 450kg
Axle Loading, Rear: 910kg Rear Hanging Distance: 500mm
Travel Speed: 7km/h Battery: 48V400AH

6000kg stepless speed control electric tow tractor with adjustable seat chair



Quick Details:

Load capacity: 6000kg

Weight: 1360kg

​Axle loading, front: 450mm

​Axle loading, rear: 910mm

​Rear hanging distance: 500mm

​Max. gradeability: 6/15%

Travel speed: 7km/h

Battery: 48V400AH

​Traction bolt





Advantages:


  • ​Multi function display instrument has power display, fault code display, work time cumulative display.

  • The combination of manual brake and hydraulic brake can improve the safety performance of the electric tow tractor.

  • Stepless speed change control.

  • Adjustable steering wheel and seat adapted to different heights of the driver.

  • Tractors and hanging workshops are easy to remove.

  • Low noise.

  • The H type drive axle makes the electric tow tractor running with good stability.

  • Low battery design greatly reduces the center of gravity.

  • The steering bridge has the function of automatic return, which makes the operation more convenient.

  • CANbus technology greatly simplifies the circuit, improve the reliability of the electrical equipment.

  • The rear cover is convenient for loading and unloading, and the parts (drive gear, tubing, accelerator, electric control, etc.) can be conveniently maintained and replaced.






SPECIFICATIONS
Model   QDD60
Drive type   battery
Load capacity kg 6000
Drawbar center height mm 280/350
Axle loading, front kg 450
Axle loading, rear kg 830
Tyre size, front solid rubber 15*4½-8
Tyre size, rear solid rubber 4.00-8
Rear hanging distance mm 450
Seat height mm 910
Overall length mm 1940
Overall width mm 1100
Overall height mm 1250
Min. ground height mm 100
Min. turning radius mm 1650
Travel speed, laden/unladen km/h 7/14
Max. gradeability, laden/unladen   6/15
Battery V/Ah 48/400
Traction bolt   Traction bolt
Service weight kg 1280
