Electric High Level Order Picker Platform 25000mm Lifting Height AC 220V
1 set
MOQ
Negotiable
Price
Electric High Level Order Picker Platform 25000mm Lifting Height AC 220V
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: GTTY25
High Light:

order picking forklift truck

,

narrow aisle order picker

Payment & Shipping Terms
Packaging Details: 1set / pallet
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 100 sets per month
Specifications
Capacity: 150kg
Max. Lifting Height: 25000mm
Overall Dimensions: 2032*1734*2987mm
Platform Dimensions: 800*800mm
Lift Speed: 43mm/s
Battery Voltage: AC 220V
Motor Power: 1.5+1.5kw
Service Weight: 2350kg
Product Description

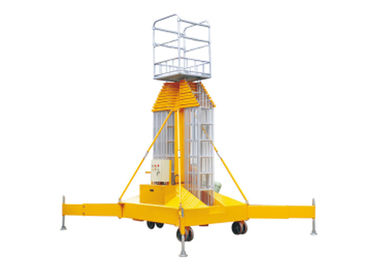

Electric 25000mm lifting height order picker forklift aerial work platform



Advantages:


  • Double motors provides enough power support for the hydraulic system.

  • ​Multi-oil cylinder adopts up and down oriented, which makes more stability. The sealing elements for the oil cylinder are all imported, with longer useful life.

  • Adopt two separate pressure meter to check the actual pressure of the two  hydraulic systems, and also easy to detect the problem of the hydraulic system.

  • ​Stainless steel guard bar are installed around the working platform, and locked by lock sleeve, which provides safer and more reliable.

  • ​Adopt two symmetry ladders structure, which prevents the rotation of the oil cylinder and ensure the stationarity of the working platform.

  • ​In emergency situation, the worker on the ground could turn off the system power source by the Emergency Stop Switch at the control box.

  • ​In emergency situation, the operator could turn off the system power source by the Emergency Stop Switch at the working platform.

  • ​Height limit switch is equipped at the lifting platform, which could stop the lifting when it reaches 25M.

  • ​Equipped with manual lowering valve, which makes the operator decline safely when in electrical accident or power off situation.




 New design adopts double ladders and anti-rotation structure, double speed lowering system.

​Multi-oil cylinder upright technology, high strength material and good mechanical property hydraulic cylinder, tower ladder shape structure, which makes the order picker forklift aerial work platform very steady even at 25M height.





SPECIFICATIONS
Model   GTTY25
Load capacity kg 150
Max. lifting height mm 25000
Overall dimension mm 2032*1734*2987
Platform dimension mm 800*800
Lift speed mm/s 43
Battery voltage V AC 220
Motor power kw 1.5+1.5
Service weight kg 2350
