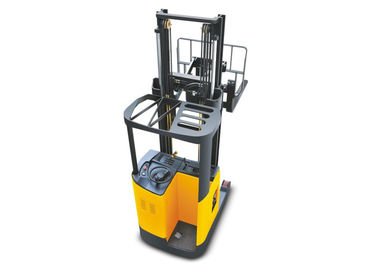

24V Narrow Aisle Forklift Truck , Narrow Aisle Lift Truck With Hydraulic Steering

Products

24V Narrow Aisle Forklift Truck , Narrow Aisle Lift Truck With Hydraulic Steering

MOQ:	1 set
Price:	Negotiable
Standard Packaging:	Nude
Delivery Period:	25 - 30 days
Payment Method:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity:	100 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

Zhejiang, China

Brand Name

REACH

Certification

CE, TUV

Model Number

CQDH15C

Capacity:

1500kg

Max. Lifting Height:

4500/5000/5500/6000mm

Height, Mast Lowered:

2185/2345/2505/2675mm

Height, Mast Extended:

5535/6035/6535/7035mm

Free Lift:

1575/1700/1825/2000mm

Turning Radius:

1718mm

Battery:

24V560AH

Service Weight:

2730/2830/2930/3030mm

Highlight:

double reach forklift

narrow aisle straddle truck

Product Description

AC control electric powered narrow aisle truck equipped with adjustable hand-rest

Quick Details:

Product name: Electric powered narrow aisle forklift truck CQDH15C

Capacity: 1500kg

Lifting height: 4500/5000/5500/6000mm

Free lift: 1575/1700/1825/2000mm

Aisle width for pallets 1000*1200 crossways: 2839mm

Aisle width for pallets 800*1200 lengthways: 2902mm

Turning radius: 1718mm

Battery: 24V560AH

Advantages:

Low center of gravity ensures the stable operation.
The hydraulic steering system, make the steering flexible.
Vertical driving wheel has small turning radius and easy to maintain. The motor structure is water-proof and dust proof.
The scissor reach forks is operated by electric controller, which makes operation stable and no impact.
Adjustable armrests for drivers of different heights.
Shock absorber to reduce noise.
Stepless speed control and regenerative braking.

SPECIFICATIONS
Model		CQDH15C
Power		battery
Load capacity/rated load	kg	1500
Load center distance	mm	500
Load distance, centre of drive axle to fork	mm	309
Tyre size, front	mm	28082+16060
Tyre size, rear	mm	125*82
Tilt of mast/fork carriage forward/backward	Grad	2/5
Height, mast lowered	mm	2185/2345/2505/2675
Free lift	mm	1575/1700/1825/2000
Max. lifting height	mm	4500/5000/5500/6000
Height, mast extended	mm	5381/5881/6381/6881
Height of overhead guard	mm	2246
Overall length	mm	2435
Overall width	mm	1310-1400/1040
Length to face of forks	mm	1365
Fork dimensions	mm	35/100/1070
Reach distance	mm	500
Fork height, lowered	mm	130
Distance of "X"	mm	450
Overall length(excluding the fork)	mm	1868
Ground clearance, centre of wheelbase	mm	65
Aisle width for pallets 1000*1200 crossways	mm	2839
Aisle width for pallets 800*1200 lengthways	mm	2902
Turning radius	mm	1718
Travel speed, laden/unladen	km/h	6.5/7
Lift speed, laden/unladen	m/s	0.135/0.16
Lowering speed, laden/unladen	m/s	0.15/0.12
Battery	V/Ah	24/420(560)
Service weight	kg	2700/2800/2900/3000

24V Narrow Aisle Forklift Truck , Narrow Aisle Lift Truck With Hydraulic Steering 0 Option: double scissors Large cab with dead Side battery with roll Vertically mounted

man power off switch, out system, convenient drive motor with

Multi-function display. to replace batteries. CANbus technology.

24V Narrow Aisle Forklift Truck , Narrow Aisle Lift Truck With Hydraulic Steering 1

24V Narrow Aisle Forklift Truck , Narrow Aisle Lift Truck With Hydraulic Steering 2
