Quick Details:

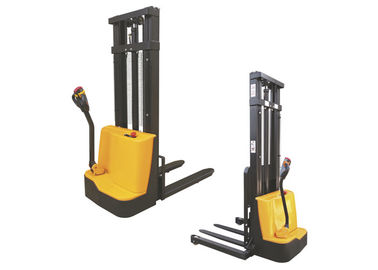

Model: Double pallet warehouse forklift trucks QDA10E
Capacity: 1000kg
Lift height: 1600/2500/3000/3300mm
Fork dimensions: 60/142/1070mm
Turning radius: 1390mm
Max. gradient, load/unload: 3/10%
Drive motor power: 0.75kw
Lift motor power: 2kw
Battery: 24V75Ah
Advantages:
Structural
| SPECIFICATIONS | ||
| Model | QDA10E | |
| Driving type | Electric | |
| Operating | Walking | |
| Rated capacity | kg | 1000 |
| Load center distance | mm | 500 |
| Max. lifting height | mm | 1600/2500/3000/3300 |
| Lowered mast height | mm | 2080/1830/2080/2230 |
| Overall height | mm | 2080/2950/3450/3600 |
| Min. fork height | mm | 85 |
| Overall length | mm | 1750 |
| Overall width | mm | 790 |
| Forks size | mm | 60/142/1070 |
| Forks width | mm | 570/660 |
| Ground clearance | mm | 58 |
| Turning radius | mm | 1390 |
| Travel speed, laden/unladen | km/h | 3.5/4 |
| Lift speed, laden/unladen | m/s | 0.1/0.2 |
| Lowering speed, laden/unladen | m/s | 0.12/0.1 |
| Max. Gradient, load/unload | % | 3/10 |
| Travel brake | electric regenerative braking | |
| Driving motor power | kw | 0.75 |
| Lifting motor power | kw | 2 |
| Battery | V/Ah | 24/75 |
| Service weight | kg | 553 |
