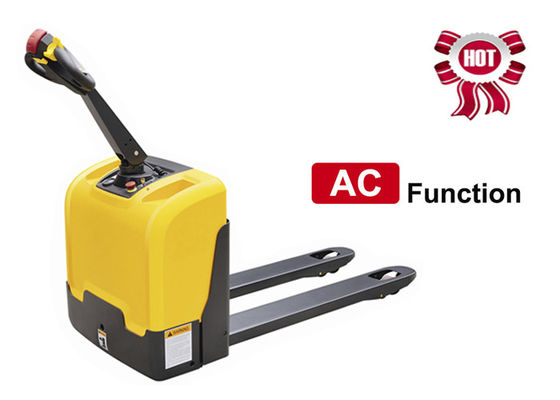

AC Function Walkie Electric Pallet Jack , Narrow Space Motorized Pallet Jack

1 set
MOQ
Negotiable
Price
AC Function Walkie Electric Pallet Jack , Narrow Space Motorized Pallet Jack
Features Gallery Product Description Request A Quote
Features
Specifications
Capacity: 2000kg
Fork Height Lowered: 85/75mm
Lift Height: 190/180mm
Aisle Width For Pallets 1000*1200 Crossways: 1725/1795mm
Aisle Width For Pallets 800*1200 Lengthways: 1775/1795mm
Turning Radius: 1335/1405mm
Battery: 24V105Ah
Service Weight: 250kg
High Light:

electric pump truck

,

electric walkie pallet jack

Basic Infomation
Place of Origin: Zhejiang, China
Brand Name: REACH
Certification: CE, TUV
Model Number: CBD20W
Payment & Shipping Terms
Packaging Details: 1set / pallet or 1set / wooden box
Delivery Time: 25 - 30 days
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 600 sets per month
Product Description

AC function 2000kg mini walkie electric pallet truck to use in narrow space





Quick details:



Model:​ Electric walkie pallet truck CBD20W​​

Capacity: 2000kg

Fork height, lowered: 85/75mm

Lifting height: 190/180mm

Fork dimensions: 53/160/1150(1220)mm

Turning radius: 1335/1405mm

Travel speed, laden/unladen: 4.5/5km/h

Battery: 24V105AH





Advantages:

  • Smallest turning radius in Mini type walkie electric pallet truck, it processes the smallest turning radius when switch to low speed and adapts to use in narrow space, for example in the container. When the handle upright, the speed limit button can release brake and greatly reduce the turning space.
  • Maintenance free DC brushless motor.
  • ​Multi-function display.
  • The max. travel speed of this electric pallet truck can reach 5.3/5.8km/h.
  • Built-in charger and full sealed battery, free to maintain and easy to charge.
  • There are emergency stop and belly button on the electric pallet truck to protect the operator's safety.
  • Full AC function.
  • Brushless Horizontal motor and Horizontal drive wheel.
  • Different kinds of handle can be choosen.
  • option: built- out charger.
  • option: different size of forks.



Powerful super light mini electric pallet truck which wons the IF product design award and reddot design award



AC Function Walkie Electric Pallet Jack , Narrow Space Motorized Pallet Jack 0

SPECIFICATIONS OF 2T MINI ELECTRIC WALKIE PALLET TRUCK
Model   CBD20W
Load capacity kg 2000
Fork height, lowered mm 85/75
Tyre size, front mm 195*70
Tyre size, rear (single) mm 80*93/74*93
Tyre size, rear (double) mm 80*70/74*70
Max. lifting height mm 190/180
Height of tiller in drive position min./max. mm 950/1310
Overall length mm 1525/1595
Length to face of forks mm 375
Overall width mm 685
Fork dimensions mm 53/160/1150(1220)
Width overall forks mm 520/550/685
Aisle width for pallets 1000*1200 crossways mm 1725/1795
Aisle width for pallets 800*1200 lengthways mm 1775/1795
Turning radius mm 1335/1405
Travel speed, laden/unladen km/h 4/4.5
Battery V/Ah 24/80
Service weight kg 250



AC Function Walkie Electric Pallet Jack , Narrow Space Motorized Pallet Jack 1
