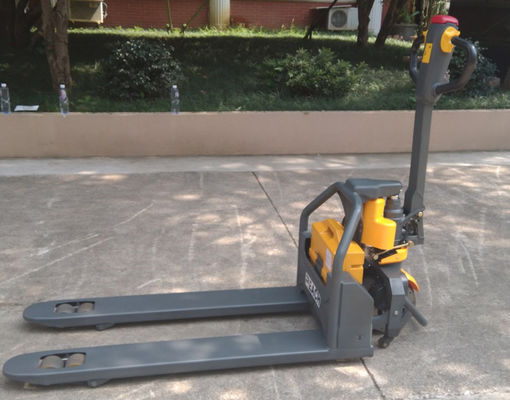

Model: electric pallet truck with lithium battery CBD12W
Fork height, lowered: 80mm
Max. lifting height: 190mm
Fork dimensions: 45/160/1150(1220)mm
Turning radius: 1452/1522mm
Travel speed, laden/unladen: 4/4.5km/h
Range of application:
Multi-function Control Handle
incorporates butterfly-style thumb controls, emergency reverse button, horn button and key switch for ease of use.
steering handle with comfort grip for reduced operator fatigue.
Long Tiller with Large Hand Grip
for easy and comfortable hold, strain-free operation.
Plug-in Battery Design
makes it easier to remove and change, no need additional tools or devices.
Integrated Rocker Arm
The rocker arm is casted in single piece, intensifying the strength and structure.
Compact Vehicle Design
Rugged and high-performing yet light weight body provides exceptional maneuverability in tight areas.
Less Wiring, Easy Service
Mechanical and electronic components are easy to change and service.
stepless speed control provides better and smoother speed changing.
brushless motor is easy for maintemance.
|SPECIFICATIONS of ELECTRIC PALLET TRUCK WITH LITHIUM BATTERY|
|Load centre distance||mm||600|
|Fork height, lowered||mm||80|
|Tyre size, front||mm||250|
|Tyre size, rear||mm||80|
|Max. lifting height||mm||190|
|Height of tiller in drive position min./max.||mm||635/1200|
|Length to face of forks||mm||501|
|Width overall forks||mm||550/680|
|Aisle width for pallets 1000*1200 crossways||mm||1850/1920|
|Aisle width for pallets 800*1200 lengthways||mm||1900/1920|
|Travel speed, laden/unladen||km/h||4/4.5|
IF product design award
Reddot design award
