Rear Wheel Drive Warehouse Lift Truck , 1 Ton Three Wheel Electric Forklift

Products

Rear Wheel Drive Warehouse Lift Truck , 1 Ton Three Wheel Electric Forklift

MOQ:	1 set
Price:	Negotiable
Standard Packaging:	Nude
Delivery Period:	25 - 30 days
Payment Method:	T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Capacity:	200 sets per month

Detail Information

Product Description

Detail Information

Place of Origin

Zhejiang, China

Brand Name

REACH

Certification

CE, TUV

Model Number

CPD10S-10

Capacity:

1000kg

Max. Lifting Height:

3000-5000mm

Fork Dimensions:

35/100/920mm

Turning Radius:

1290mm

Travel Speed, Laden/unladen:

6.2/6.5km/h

Aisle Width:

2950mm

Battery:

24V400AH

Service Weight:

2180kg

Highlight:

three wheel electric forklift

electric warehouse forklift

1 ton warehouse forklift trucks

Product Description

Rear wheel drive 1 ton warehouse forklift trucks three wheel electric forklift

Quick Details:

Model: warehouse forklift trucks CPD10S-10
Capacity: 1000kg
Lift height: 3000-5000mm
Aisle width for pallets 1000*1200 crossways: 2950mm
Aisle width for pallets 800*1200 lengthways: 3050mm
Turning radius: 1290mm
Travel speed: 6.2/6.5km/h
Battery: 24V400AH

Advantages:

Excellent product performance:

One rear driving wheel.
Germany imported driving axle.
AC driving motor, compact construe, high performance, regenerative braking.
First class travelling speed, loading speed and grade ability.
Three different travelling modes to choose according to different needs.
Lateral turning radius is only 1290mm and minimum right angle stacking aisle is only 2950mm.

Ergonomic principles:

Adjustable steering wheel and the seat, make the driver can adjust the position according to his need.
Integrated light switch and steering signal rod.
Better front vision.
Emergency power cut off plug.

Simple maintenance and operation:

Easy maintained controller and steering potentiometer.
Lifting and driving AC motors without carbon brush almost has no need to maintain, which greatly reduce maintenance and service is more convenient.
Over discharge protecting system.
Self-checking system.
Braking oil cup is installed on the instrument panel, so as to check and add braking oil conveniently.
Side way battery box is easy to maintain and change the battery.

electric controller selection: DMC, CURTIS.

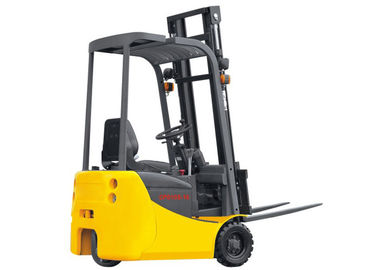

Rear Wheel Drive Warehouse Lift Truck , 1 Ton Three Wheel Electric Forklift 0

SPECIFICATIONS OF 3 WHEEL ELECTRIC WAREHOUSE FORKLIFT TRUCK
Model		CPD10S-10
Drive		Rear Wheel Drive
Operation type		seated
Load capacity/rated load	kg	1000
Load center distance	mm	500
Load distance, centre of drive axle to fork	mm	284
Wheelbase	mm	1080
Axle loading, laden front/rear	kg	2700/480
Axle loading, unladen front/rear	kg	720/1460
Tyres		super elastic solid tires
Tyre size, front	mm	16610½
Tyre size, rear	mm	280*100/PU
Tread, front	mm	892
Tread, rear	mm	0
Tilt of mast/fork carriage forward/backward(α/β)	°	3/6
Height, mast lowered	mm	2126-2240
Free lift	mm	option
Lift height	mm	3000-5000
Height, mast extended	mm	3617-5617
Height of overhead guard(cabin)	mm	1965
Seat height/stand height	mm	850
Coupling height	mm	480
Overall length	mm	2495
Length to face of forks	mm	1575
Overall width	mm	1012
Fork dimensions	mm	35/100/950
Fork carriage width	mm	900
Ground clearance, laden, below mast	mm	100
Ground clearance, centre of wheelbase	mm	85
Aisle width for pallets 1000*1200 crossways	mm	2950
Aisle width for pallets 800*1200 lengthways	mm	3050
Turning radius	mm	1290
Travel speed, laden/unladen	km/h	6.5/6.5
Lift speed, laden/unladen	mm/s	150/180
Lowering speed, laden/unladen	mm/s	＜600
Max. gradeability, laden/unladen	%	10/15
Battery	V/Ah	24/400
Sound level at the driver's ear acc. to DIN 12053	dB(A)	68
Service weight	kg	2180

Rear Wheel Drive Warehouse Lift Truck , 1 Ton Three Wheel Electric Forklift 1
